C322

Component ID: 51
Component : C322

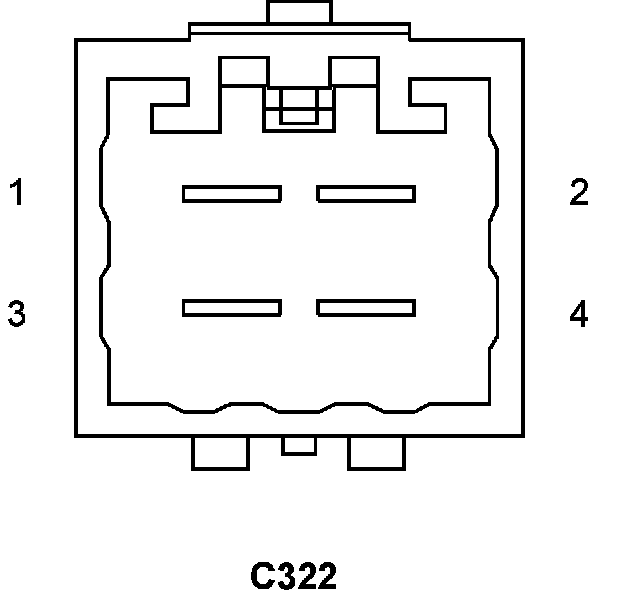

Connector:
Name : C322
Color :
# of pins : 4
Gender : FEMALE




Pin Circuit Description
1 A906 16RD FUSED B(+)
2 Z919 14BK/TN GROUND
3 C15 12DB/WT FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
4 Z919 16BK/TN GROUND

Component Location - 60




Component Location - 63

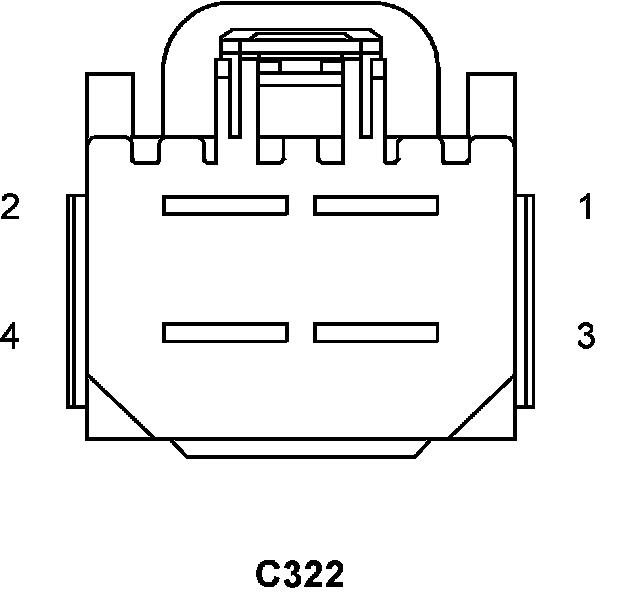

Connector:
Name : C322
Color :
# of pins : 4
Gender : MALE




Pin Circuit Description
1 A906 16DB/PK FUSED B(+)
Pin Circuit Description
1 A906 16RD FUSED B(+)
2 Z919 16BK/TN GROUND
3 C15 12DB/WT FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
4 Z920 12BK/OR GROUND

Component Location - 60




Component Location - 63
