C323

Component ID: 52
Component : C323

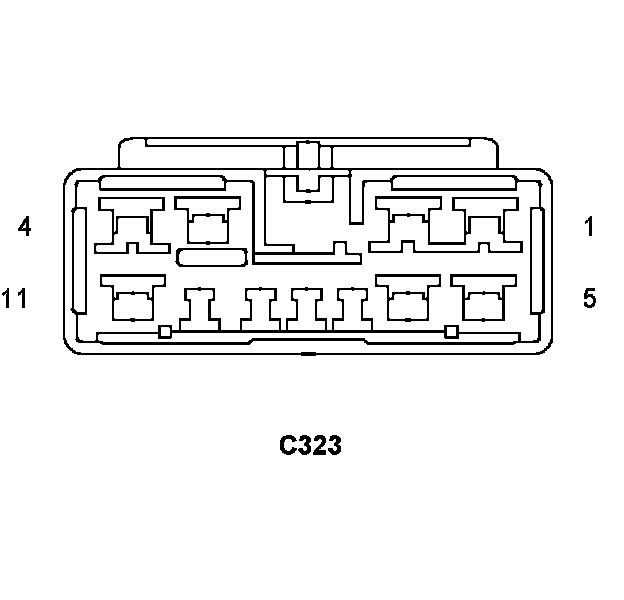

Connector:
Name : C323
Color :
# of pins : 11
Gender : FEMALE

Pin Circuit Description
1 C15 12DB/WT FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
2 W13 16BR/LG REAR WIPER MOTOR CONTROL
3 - -
4 - -
5 P304 16LG/DB LIFTGATE LOCK DRIVER
6 P306 16LG/LB LIFTGATE UNLOCK DRIVER
7 L51 18WT/DG BRAKE LAMP SWITCH OUTPUT
8 L17 18WT/LG LEFT REAR PARK LAMP CONTROL OUTPUT
9 W17 20BR/DB REAR WIPER PARK SWITCH SENSE
10 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
11 Z920 12BK/OR GROUND

Component Location - 65

Component Location - 66

Component Location - 64

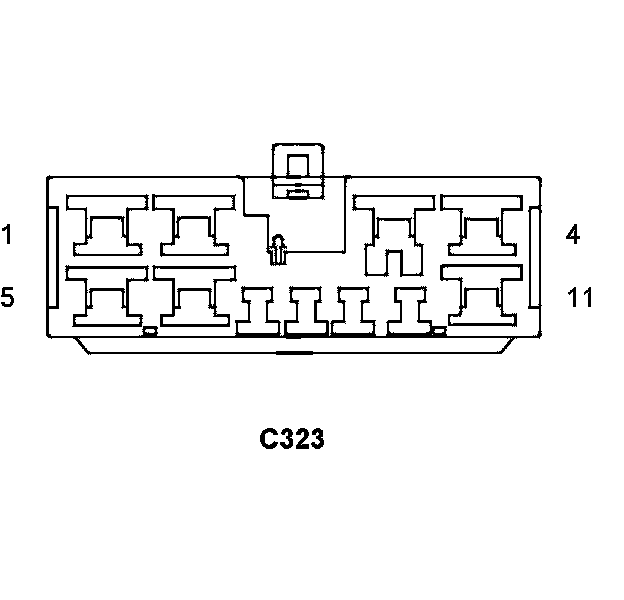

Connector:
Name : C323
Color :
# of pins : 11
Gender : MALE

Component Location - 66

Component Location - 64
