C324

Component ID: 53
Component : C324

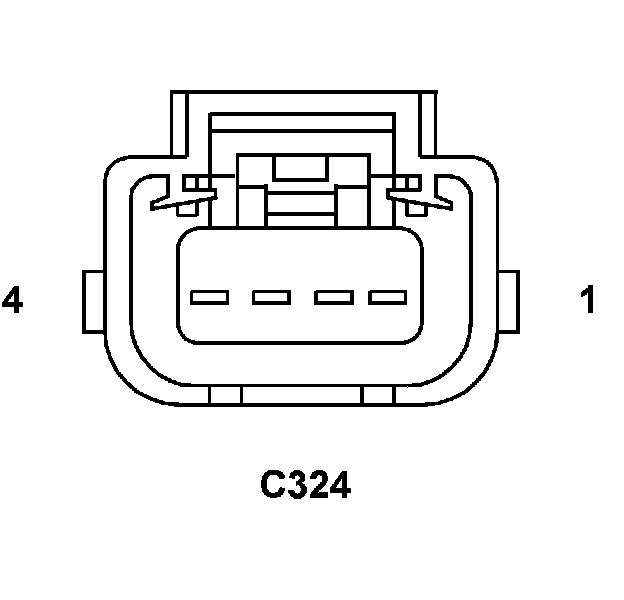

Connector:
Name : C324
Color :
# of pins : 4
Gender : FEMALE




Pin Circuit Description
1 R8120LB/WT LEFT FRONT IMPACT SENSOR GROUND
2 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
3 - -
4 - -

Component Location - 4




Component Location - 5




Component Location - 28

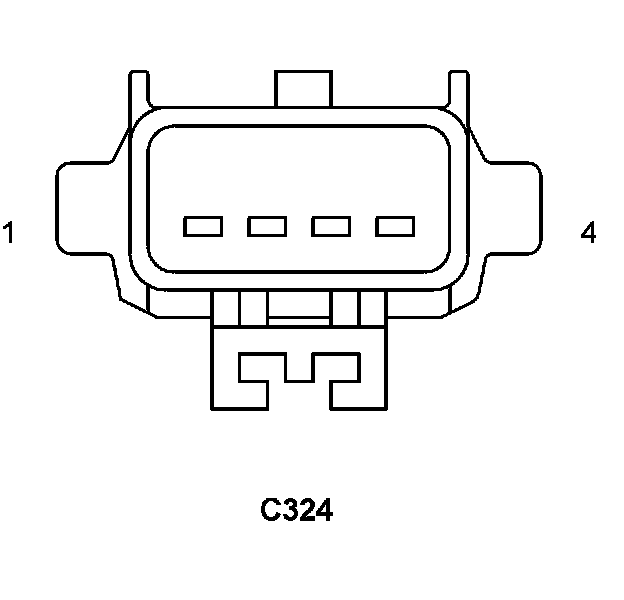

Connector:
Name : C324
Color :
# of pins : 4
Gender : MALE




Pin Circuit Description
1 R81 20LB/WT LEFT FRONT IMPACT SENSOR GROUND
2 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
3 - -
4 - -

Component Location - 4




Component Location - 5




Component Location - 28
