Parking Assist Control Module

Component ID: 198
Component : MODULE-PARK ASSIST

Connector:

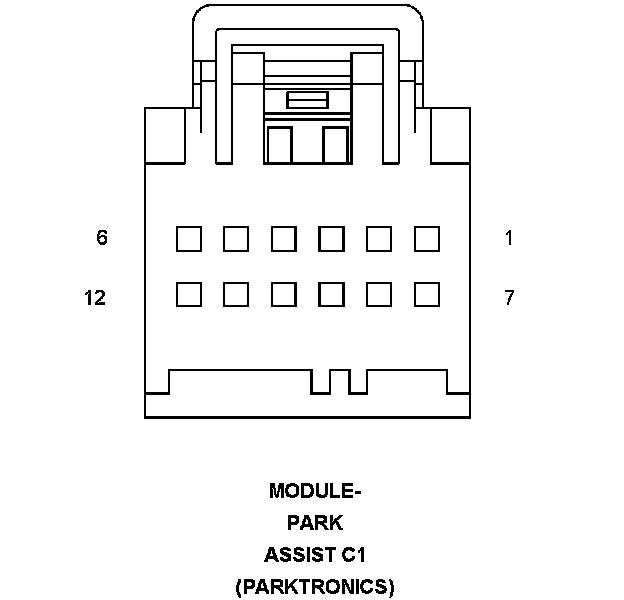

Name : MODULE-PARK ASSIST C1
Color :
# of pins : 12
Qualifier : (PARKTRONICS)




Pin Circuit Description
1 F921 20PK/YL FUSED RUN RELAY OUTPUT
2 X777 20DG/GY PARK ASSIST DISPLAY SUPPLY
3 - -
4 D777 20WT/GY PARK ASSIST DISPLAY SIGNAL
5 - -
6 D265 20WT/GY CAN INTERIOR BUS (125K) (+)
7 - -
8 - -
9 - -
10 X779 20GY/OR PARK ASSIST DISPLAY RETURN
11 Z920 20DG/BK GROUND
12 D264 20WT/OR CAN INTERIOR BUS (125K) (-)

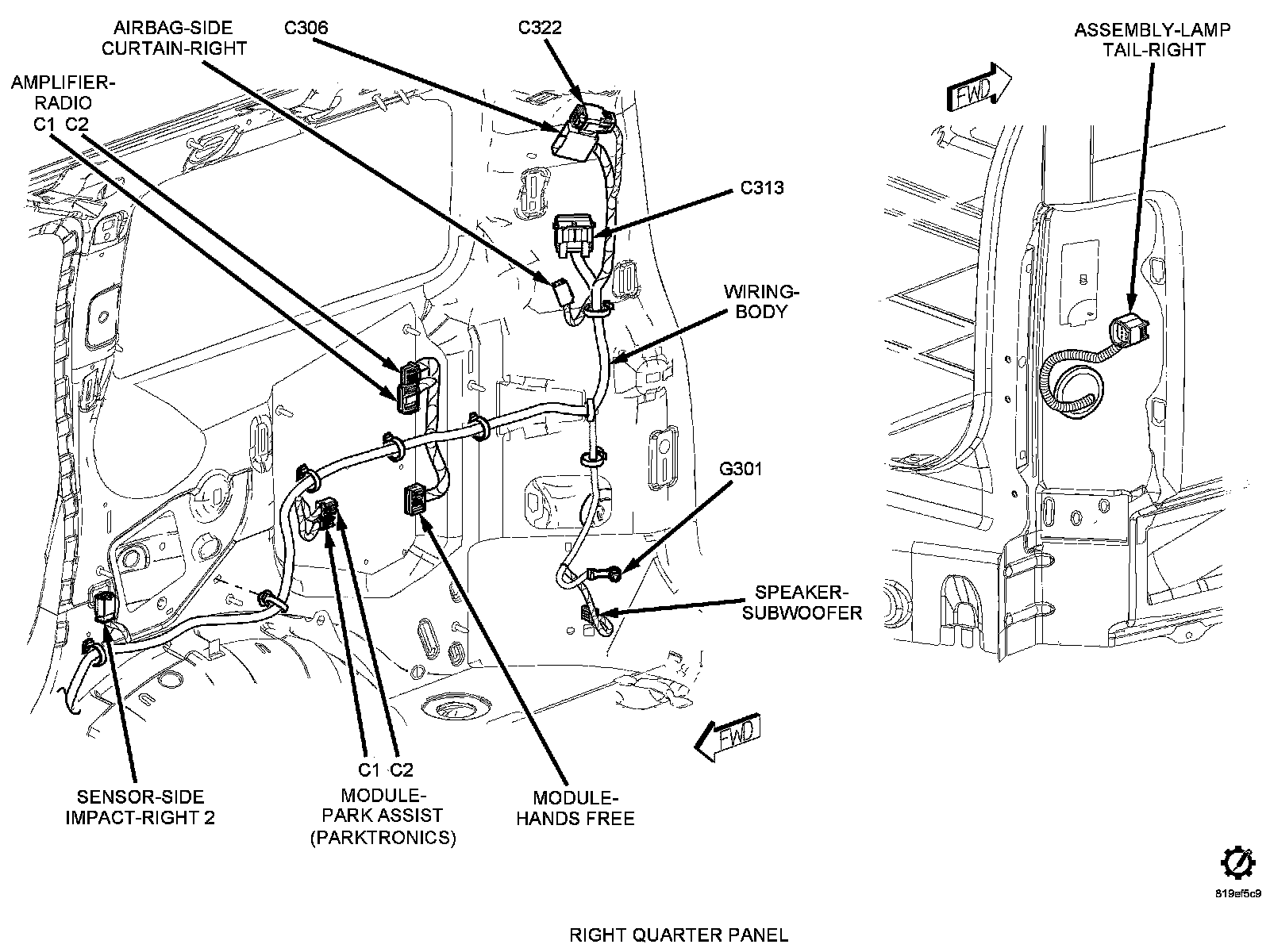

Component Location - 60






Connector:
Name : MODULE-PARK ASSIST C2
Color :
# of pins : 8
Qualifier : (PARKTRONICS)




Pin Circuit Description
1 D701 20WT/LB PARK ASSIST SENSOR NO. 8 SIGNAL
2 D703 20WT/OR PARK ASSIST SENSOR NO. 9 SIGNAL
3 D704 20WT/DG PARK ASSIST SENSOR NO. 10 SIGNAL
4 X700 20GY/OR PARK ASSIST SENSOR SUPPLY
5 D710 20WT PARK ASSIST SENSOR NO. 11 SIGNAL
6 X750 20GY/LB PARK ASSIST SENSOR GROUND
7 - -
8 - -

Component Location - 60
