Compass

Component ID: 183
Component : MODULE-COMPASS

Connector:
Name : MODULE-COMPASS
Color : BLACK
# of pins : 4




Pin Circuit Description
1 - -
2 D506 20WT/DG LIN BUS
3 Z919 20BK/RD GROUND
4 F921 20PK/YL FUSED RUN RELAY OUTPUT

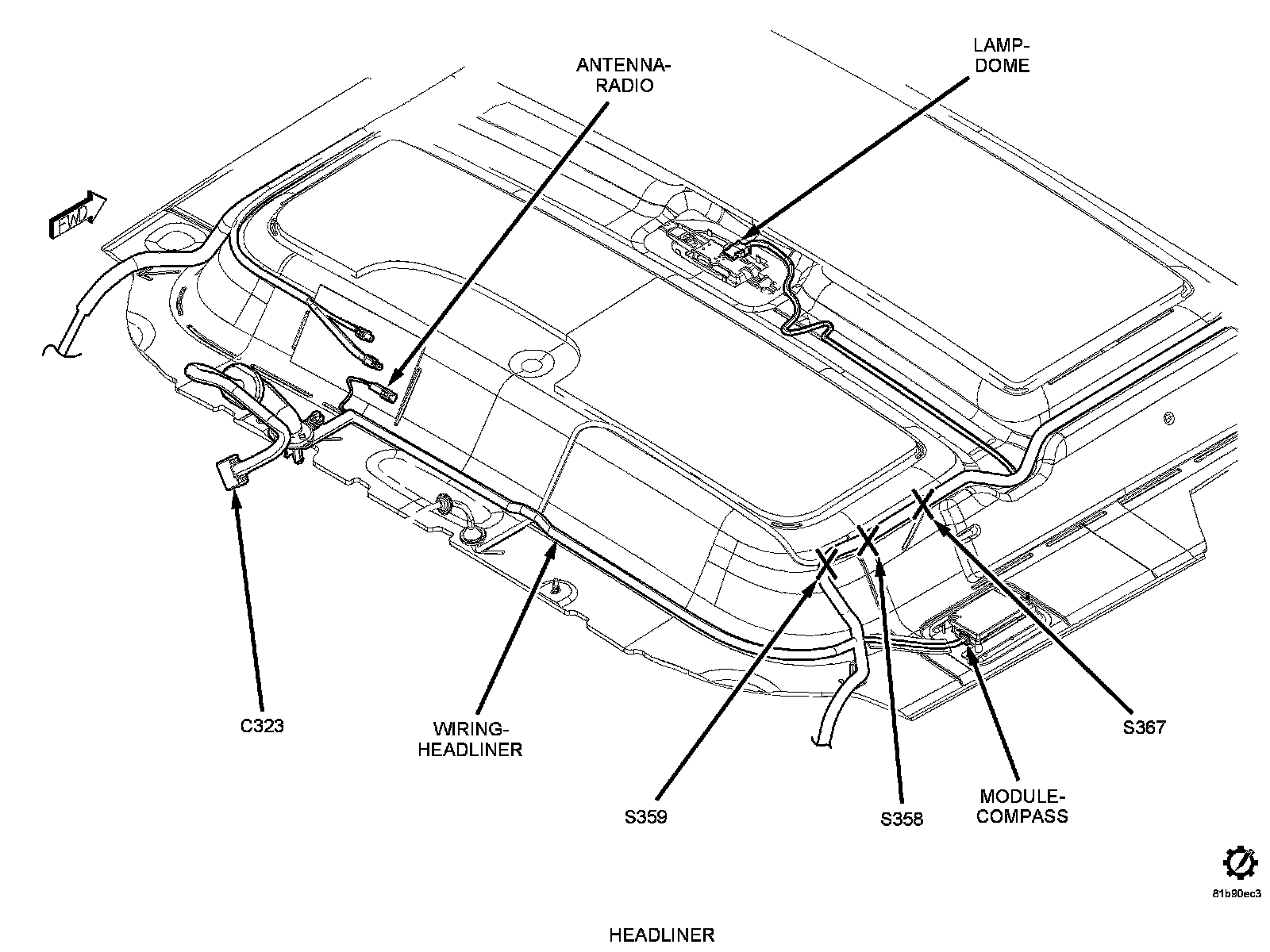

Component Location - 64
