Compressor Clutch

Component ID: 58
Component : CLUTCH-A/C COMPRESSOR

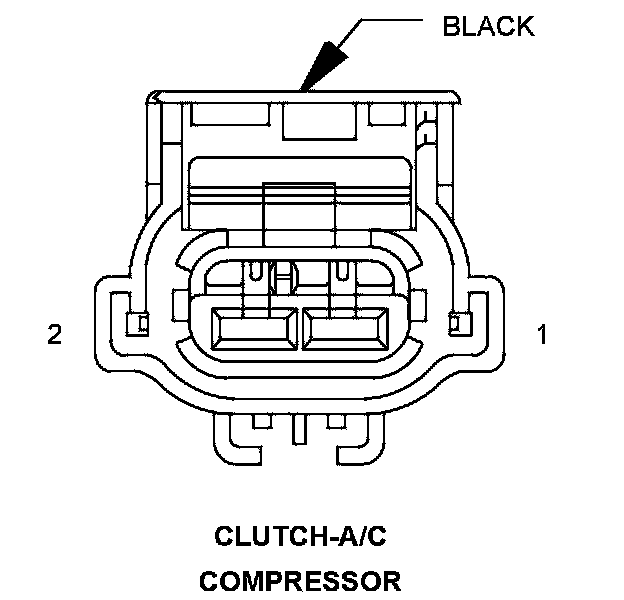

Connector:
Name : CLUTCH-A/C COMPRESSOR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 C3 18DB/YL A/C CLUTCH CONTROL OUTPUT
2 Z904 18BK/VT GROUND
2 Z904 18BK GROUND

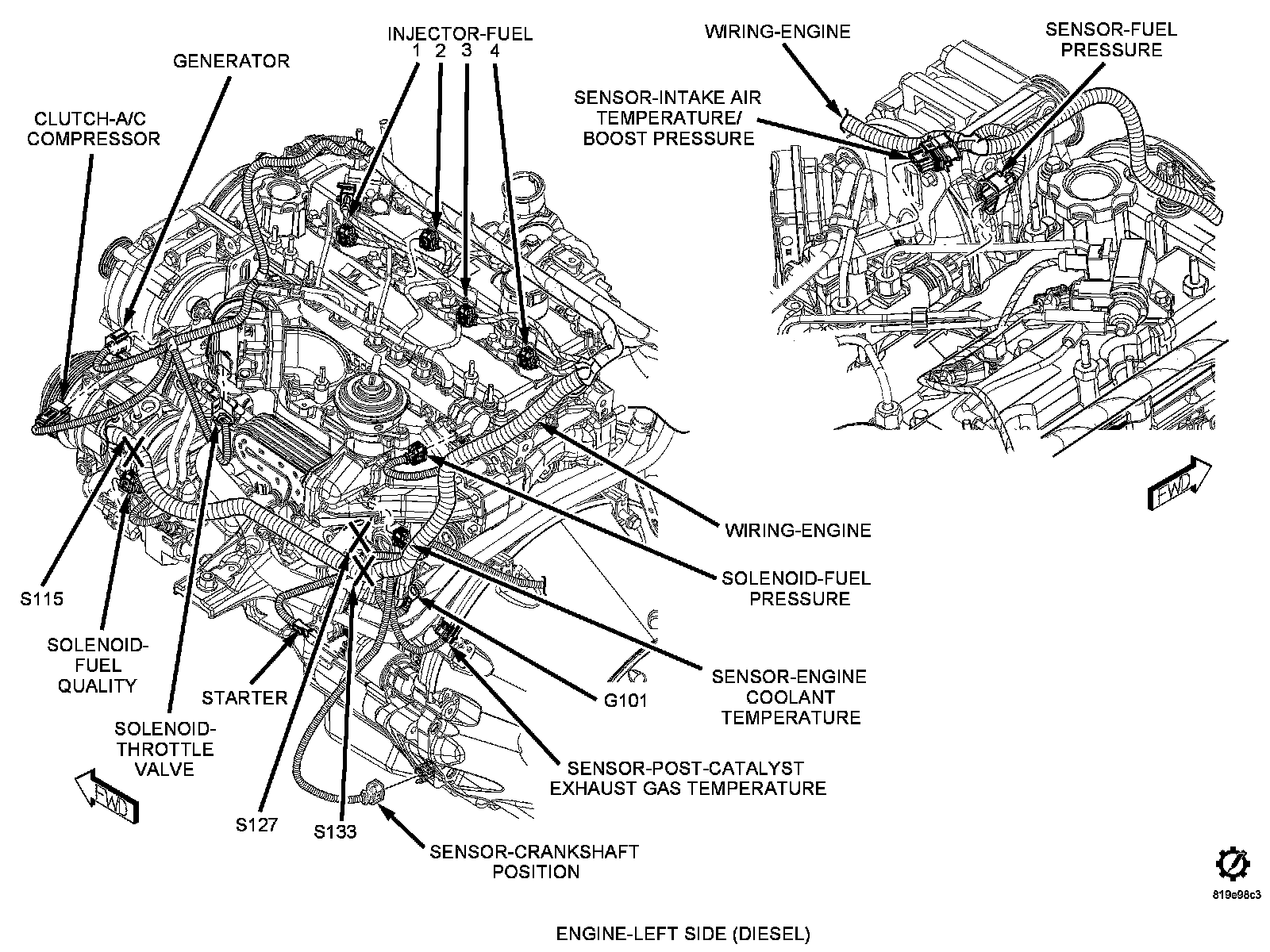

Component Location - 15




Component Location - 24




Component Location - 17




Component Location - 18
