Control Assembly, HVAC

Component ID: 65
Component : CONTROL-A/C-HEATER

Connector:

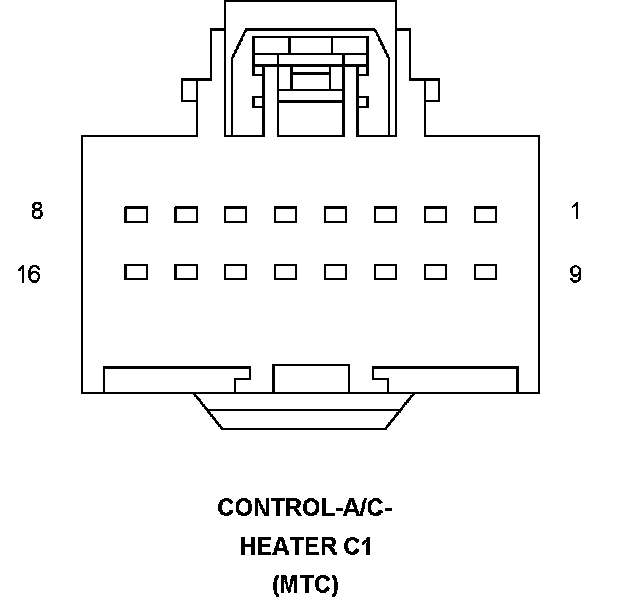

Name : CONTROL-A/C-HEATER C1
Color :
# of pins : 16
Qualifier : (MTC)
Gender : FEMALE




Pin Circuit Description
1 - -
2 - -
3 F921 18PK/YL FUSED RUN/START RELAY OUTPUT
4 Z910 18BK/PK GROUND
5 D264 20WT/OR CAN INTERIOR BUS (125K) (-)
6 D265 20WT/GY CAN INTERIOR BUS (125K) (+)
7 C121 20DB/DG SENSOR GROUND
8 C21 20DB/LG EVAPORATOR TEMPERATURE SENSOR SIGNAL
9 - -
10 - -
11 C32 20DB/TN RECIRCULATION DOOR DRIVER
12 C35 20LB/OR MODE DOOR DRIVER
13 C61 20DG/LG BLEND DOOR DRIVER
14 C34D 20DB/LG COMMON DOOR DRIVER
15 - -
16 - -

Component Location - 43




Component Location - 48






Connector:
Name : CONTROL-A/C-HEATER C2
Color :
# of pins : 5
Qualifier : (MTC)
Gender : FEMALE




Pin Circuit Description
1 Z911B 10BK GROUND
2 C71 16DB/BR FRONT BLOWER LOW SPEED
3 C72 16DB/OR FRONT BLOWER M1 SPEED
4 C73 12DB/VT FRONT BLOWER M2 SPEED
5 C75 10DB/GY BLOWER MOTOR HIGH DRIVER

Component Location - 43




Component Location - 48
