Cruise Control Switch

Component ID: 441
Component : SWITCH-SPEED CONTROL

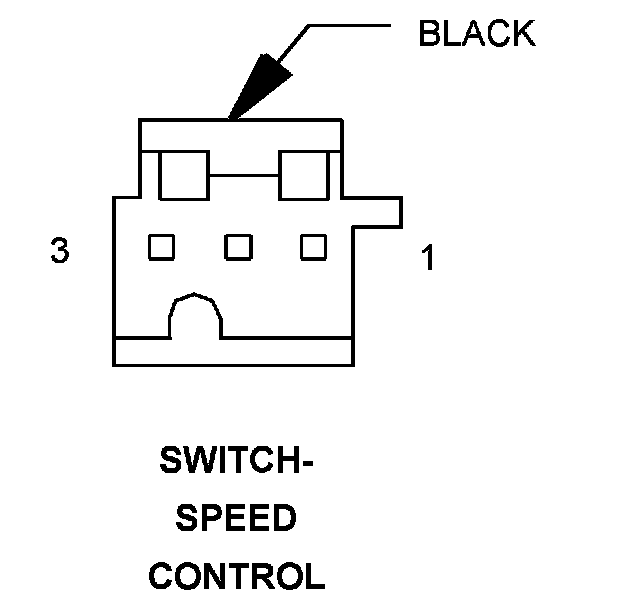

Connector:
Name : SWITCH-SPEED CONTROL
Color : BLACK
# of pins : 3




Pin Circuit Description
1 V72 20PK S/C SIGNAL 2
2 V937 20YL S/C RETURN
3 V71 20VT S/C SIGNAL 1
