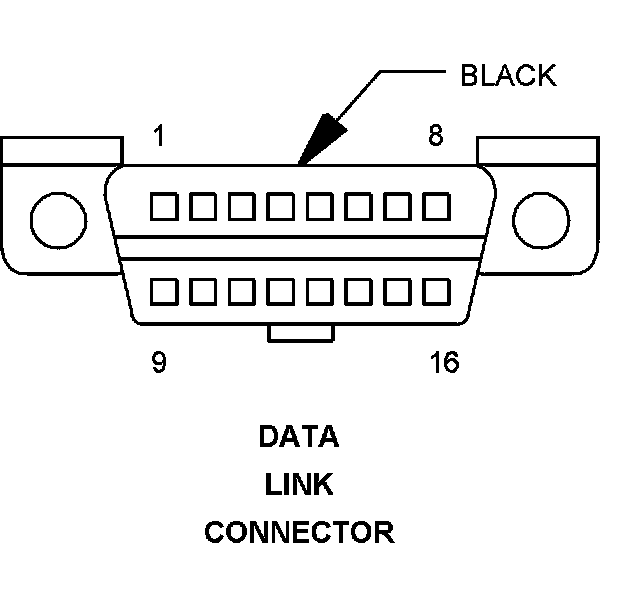

Data Link Connector

Component ID: 66
Component : DATA LINK CONNECTOR

Connector:
Name : DATA LINK CONNECTOR
Color : BLACK
# of pins : 16
Gender : FEMALE




Pin Circuit Description
1 - -
2 - -
3 - -
4 Z910 18BK/LG GROUND
5 Z910 18BK/YL GROUND
6 D72 20WT/LB DIAGNOSTIC CAN C (+)
7 - -
8 - -
9 - -
10 - -
11 - -
12 - -
13 - -
14 D71 20WT/DB DIAGNOSTIC CAN C (-)
15 - -
16 A901 18RD FUSED B(+)

Component Location - 45




Component Location - 41
