EGR Valve

Component ID: 14
Component : ASSEMBLY-EGR VALVE

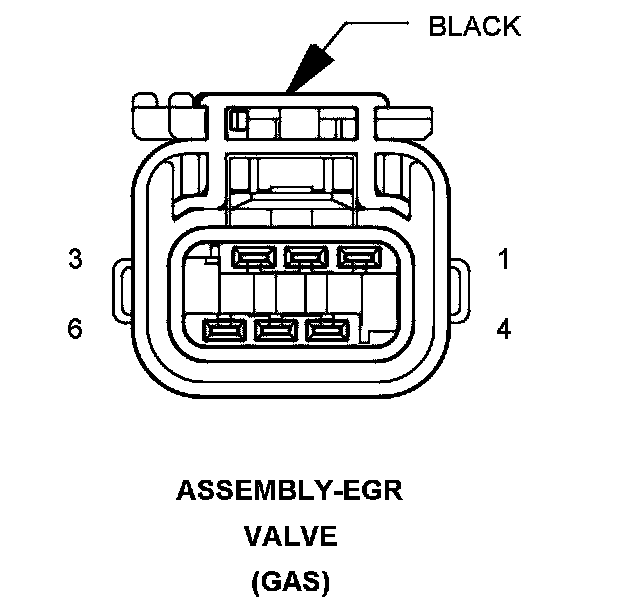

Connector:
Name : ASSEMBLY-EGR VALVE
Color : BLACK
# of pins : 6
Qualifier : (GAS)




Pin Circuit Description
1 K34 18DB/LG EGR SIGNAL
2 K857 18BR/LG 5 VOLT SUPPLY
3 K900 18DB/DG SENSOR GROUND
4 Z904 18BK GROUND
5 - -
6 K35 18DB/VT EGR CONTROL

Component Location - 15




Component Location - 19




Component Location - 17
