Injector-Fuel 1

Component ID: 145
Component : INJECTOR-FUEL 1

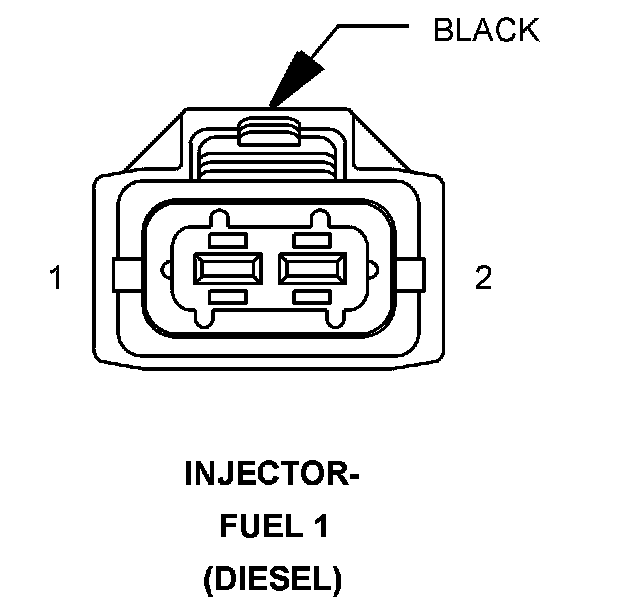

Connector:
Name : INJECTOR-FUEL 1
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Circuit Description
1 K11 16BR/YL INJECTOR 1 HIGH-SIDE CONTROL
2 K611 16OR/BR INJECTOR 1 LOW-SIDE CONTROL

Component Location - 15




Component Location - 24




Component Location - 17

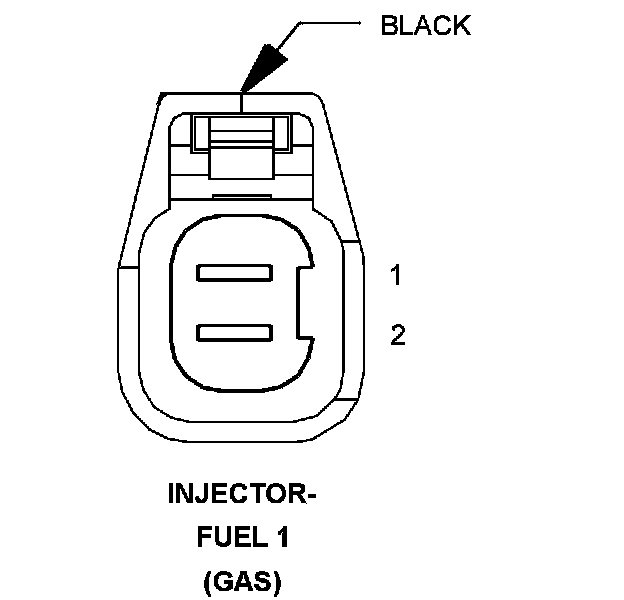

Connector:
Name : INJECTOR-FUEL 1
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 F342 16BR/WT FUSED ASD RELAY OUTPUT
Pin Circuit Description
1 K11 16BR/YL INJECTOR 1 CONTROL
2 K11 16BR/YL INJECTOR 1 CONTROL
2 F342 16BR/WT FUSED ASD RELAY OUTPUT

Component Location - 15




Component Location - 24




Component Location - 17
