Injector-Fuel 2

Component ID: 146
Component : INJECTOR-FUEL 2

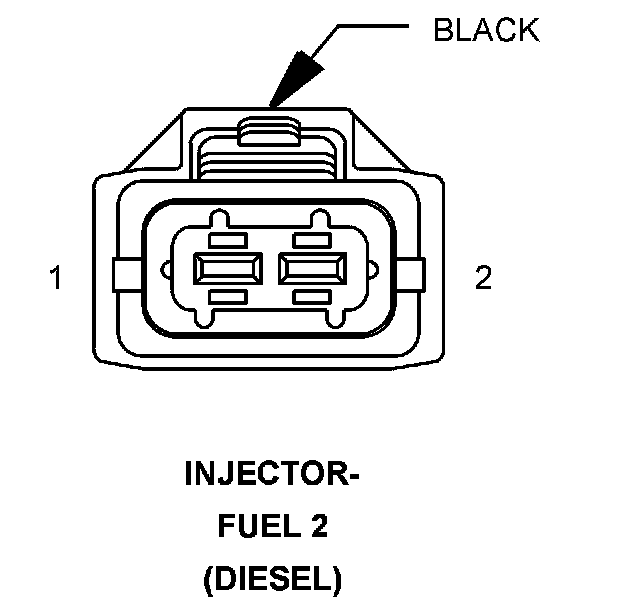

Connector:
Name : INJECTOR-FUEL 2
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Circuit Description
1 K12 16BR/DB INJECTOR 2 HIGH-SIDE CONTROL
2 K612 16YL/BR INJECTOR 2 LOW-SIDE CONTROL

Component Location - 16




Component Location - 24




Component Location - 17

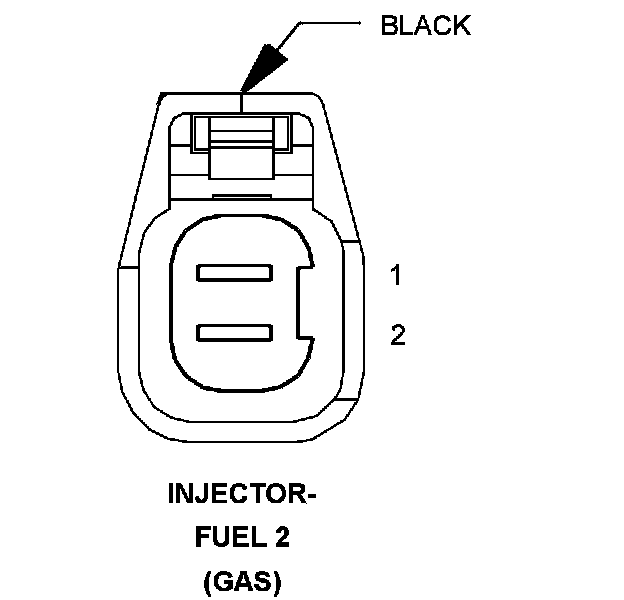

Connector:
Name : INJECTOR-FUEL 2
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 F342 16BR/WT FUSED ASD RELAY OUTPUT
Pin Circuit Description
1 K12 16BR/DB INJECTOR 2 CONTROL
2 K12 16BR/DB INJECTOR 2 CONTROL
2 F342 16BR/WT FUSED ASD RELAY OUTPUT

Component Location - 16




Component Location - 24




Component Location - 17
