Injector-Fuel 3

Component ID: 147
Component : INJECTOR-FUEL 3

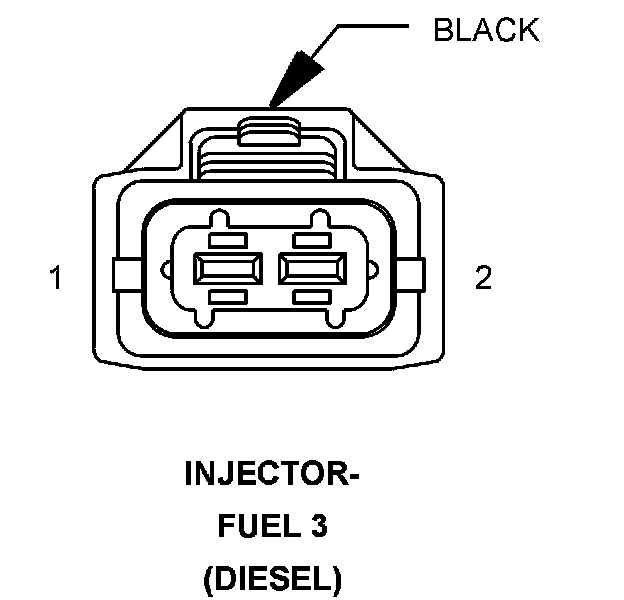

Connector:
Name : INJECTOR-FUEL 3
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Circuit Description
1 K13 16BR/LB INJECTOR 3 HIGH-SIDE CONTROL
2 K613 16GY/BR INJECTOR 3 LOW-SIDE CONTROL

Component Location - 15




Component Location - 24




Component Location - 17






Connector:
Name : INJECTOR-FUEL 3
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 F342 16BR/WT FUSED ASD RELAY OUTPUT
Pin Circuit Description
1 K13 16BR/LB INJECTOR 3 CONTROL
2 K13 16BR/LB INJECTOR 3 CONTROL
2 F342 16BR/WT FUSED ASD RELAY OUTPUT

Component Location - 15




Component Location - 24




Component Location - 17
