Injector-Fuel 4

Component ID: 148
Component : INJECTOR-FUEL 4

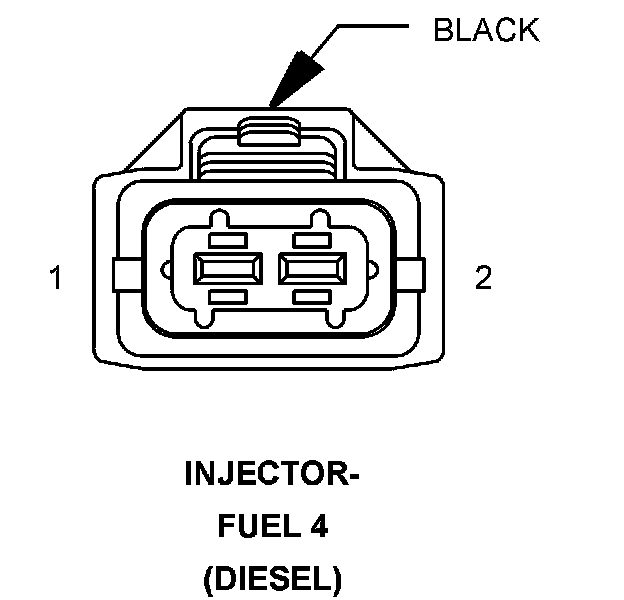

Connector:
Name : INJECTOR-FUEL 4
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Circuit Description
1 K14 16BR/TN INJECTOR 4 HIGH-SIDE CONTROL
2 K614 16WT/BR INJECTOR 4 LOW-SIDE CONTROL

Component Location - 16




Component Location - 24




Component Location - 17

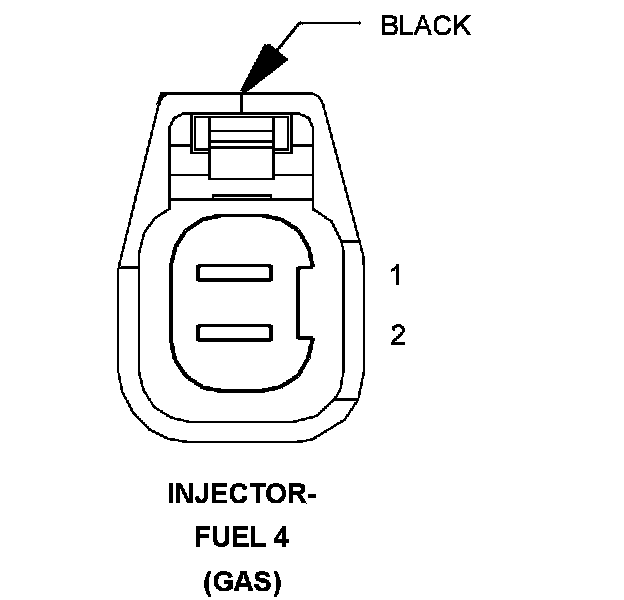

Connector:
Name : INJECTOR-FUEL 4
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 F342 16BR/WT FUSED ASD RELAY OUTPUT
Pin Circuit Description
1 K14 16BR/TN INJECTOR 4 CONTROL
2 K14 16BR/TN INJECTOR 4 CONTROL
2 F342 16BR/WT FUSED ASD RELAY OUTPUT

Component Location - 16




Component Location - 24




Component Location - 17
