Injector-Fuel 6

Component ID: 150
Component : INJECTOR-FUEL 6

Connector:

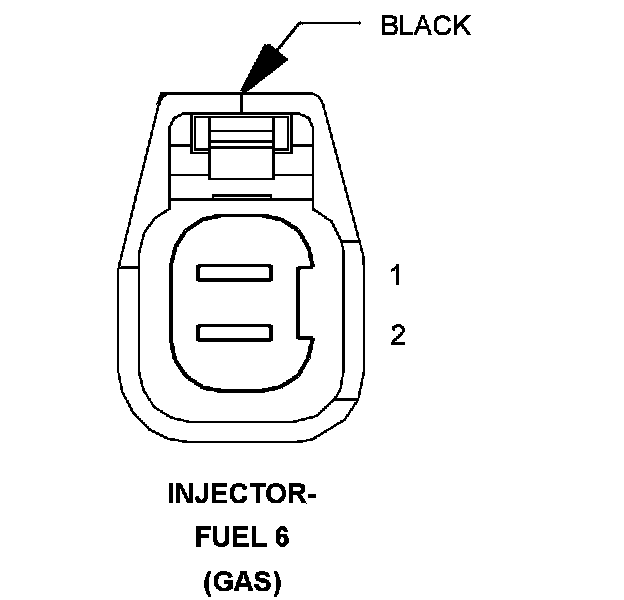

Name : INJECTOR-FUEL 6
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 F342 14BR/WT FUSED ASD RELAY OUTPUT
Pin Circuit Description
1 K58 18BR/VT INJECTOR 6 CONTROL
2 K58 16BR/VT INJECTOR 6 CONTROL
2 F342 16BR/WT FUSED ASD RELAY OUTPUT
