System Diagram

Component ID: 23
Component : BACKLITE-ELECTRIC HEATED

Connector:
Name : BACKLITE-ELECTRIC HEATED
Color : BLACK
# of pins : 1
Qualifier : (GROUND)




Pin Circuit Description
1 Z920 12BK/OR GROUND

Component Location - 66

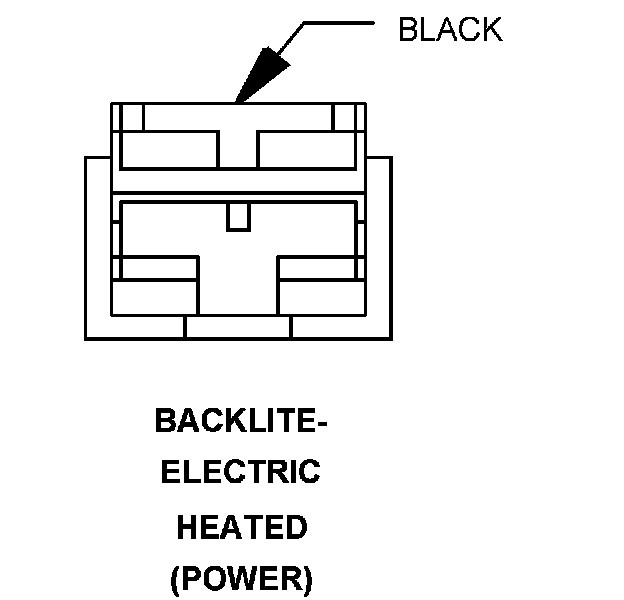

Connector:
Name : BACKLITE-ELECTRIC HEATED
Color : BLACK
# of pins : 1
Qualifier : (POWER)




Pin Circuit Description
1 C15 12DB/WT FUSED REAR WINDOW DEFOGGER RELAY OUTPUT

Component Location - 66
