Housing Assembly HVAC




Component ID: 17
Component : ASSEMBLY-HVAC

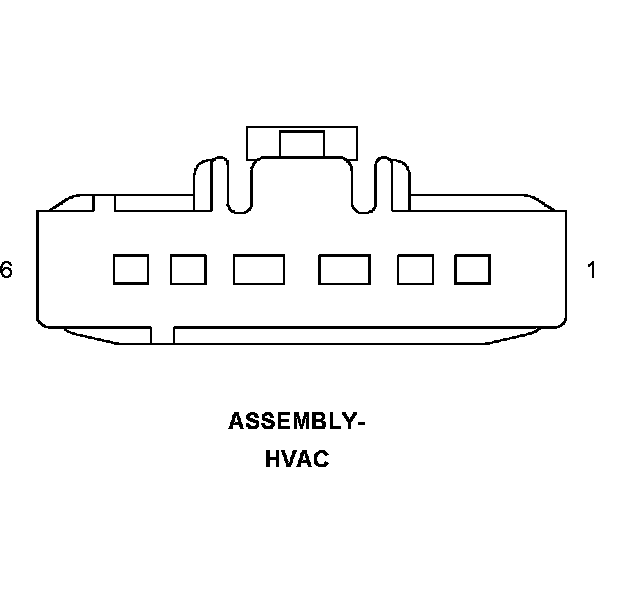

Connector:
Name : ASSEMBLY-HVAC C1
Color :
# of pins : 6




Pin Circuit Description
1 - -
2 - -
3 - -
4 C806 10DB/BR BLOWER MOTOR CONTROL OUTPUT
5 - -
6 C56 18DB/LB BLOWER MOTOR CONTROL

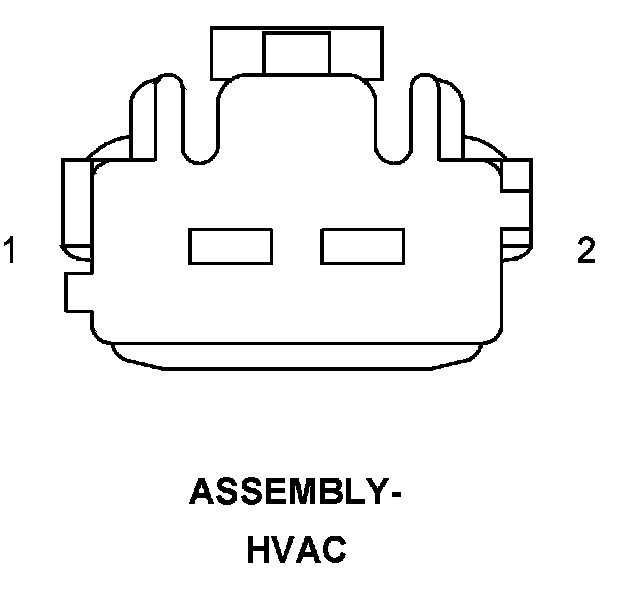

Connector:
Name : ASSEMBLY-HVAC C2
Color :
# of pins : 2




Pin Circuit Description
1 C7 10DB BLOWER MOTOR SUPPLY
2 Z911 10BK GROUND
