Hydraulic Control Assembly - Antilock Brakes

Component ID: 15

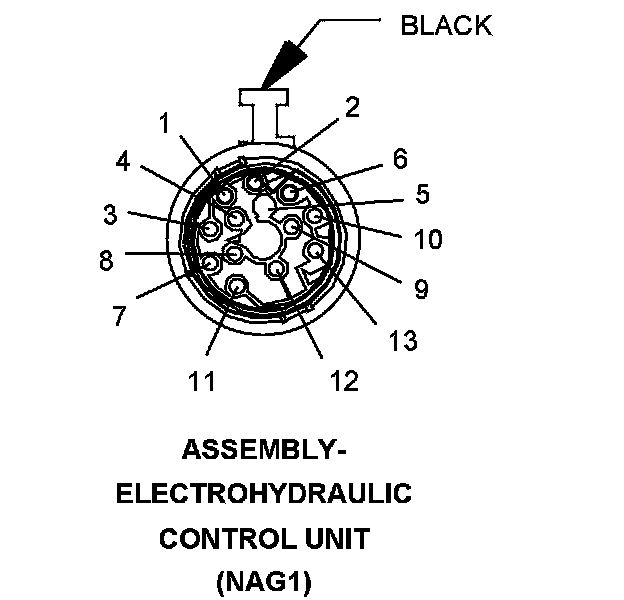

Component : ASSEMBLY-ELECTROHYDRAULIC CONTROL UNIT

Connector:
Name : ASSEMBLY-ELECTROHYDRAULIC CONTROL UNIT
Color : BLACK
# of pins : 13
Qualifier : (NAG1)




Pin Circuit Description
1 T71 18YL/PK INPUT SPEED 2 (N3) SIGNAL
Pin Circuit Description
1 T71 18YL/OR INPUT SPEED 2 (N3) SIGNAL
2 T76 18YL/TN MODULATION PRESSURE CONTROL
3 T70 18YL INPUT SPEED 1 (N2) SIGNAL
4 T54 18VT TRANSMISSION TEMPERATURE SIGNAL
5 - -
6 T78 18LB SOLENOID SUPPLY VOLTAGE
6 T78 18YL SOLENOID SUPPLY VOLTAGE
7 T72 18YL/DB SENSOR SUPPLY VOLTAGE
8 T74 18YL/LG 2-3 CONTROL
9 T73 18YL/GY 3-4 CONTROL
10 T77 18YL/BR SHIFT PRESSURE CONTROL
11 T75 18YL/LB TCC CONTROL
12 T13 18DG/VT SENSOR GROUND
13 T60 18YL/BK 1-2/4-5 CONTROL
13 T60 18YL/GY 1-2/4-5 CONTROL

Component Location - 25




Component Location - 17
