Coil-Ignition 1

Component ID: 59
Component : COIL-IGNITION 1

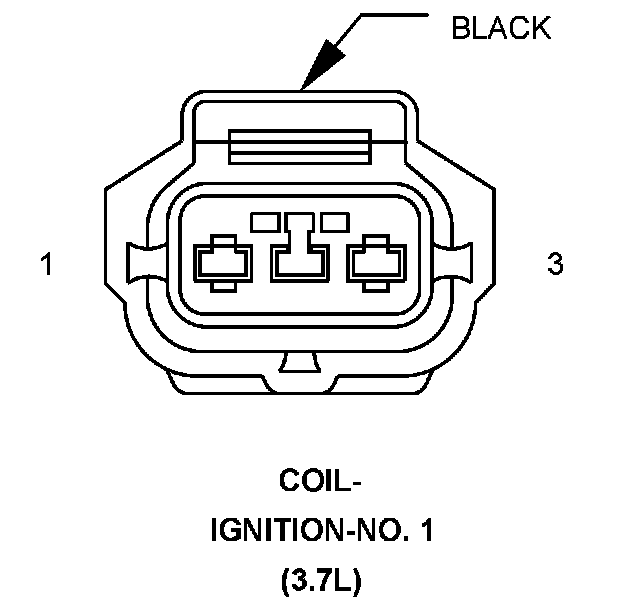

Connector:
Name : COIL-IGNITION 1
Color : BLACK
# of pins : 3
Qualifier : (3.7L)
Gender : MALE




Pin Circuit Description
1 K86 16YL/DB COIL CONTROL 1
2 F344 16BR/GY FUSED ASD RELAY OUTPUT
3 - -

Component Location - 15




Component Location - 17

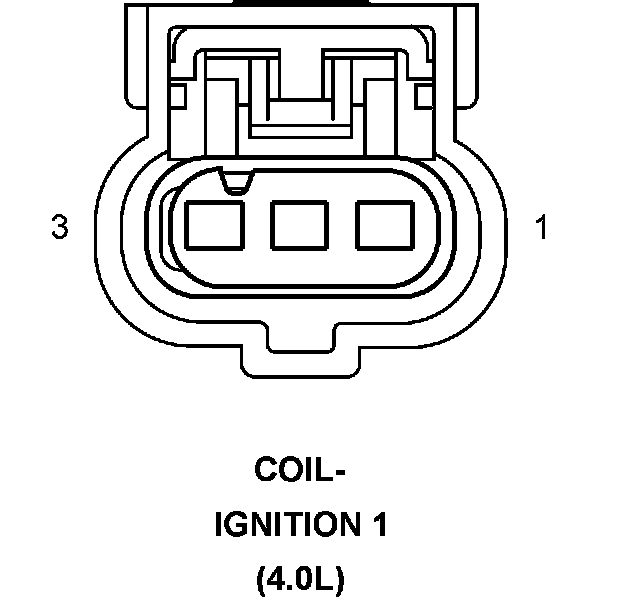

Connector:
Name : COIL-IGNITION 1
Color :
# of pins : 3
Qualifier : (4.0L)




Pin Circuit Description
1 - -
2 K86 16YL/DB COIL CONTROL 1
3 F344 16BR/GY FUSED ASD RELAY OUTPUT

Component Location - 15




Component Location - 17
