Coil-Ignition 2

Component ID: 60
Component : COIL-IGNITION 2

Connector:
Name : COIL-IGNITION 2
Color : BLACK
# of pins : 2
Qualifier : (3.7L)




Pin Circuit Description
1 K85 16DB/YL COIL CONTROL 2
2 F344 16BR/GY FUSED ASD RELAY OUTPUT
3 - -

Component Location - 16




Component Location - 17

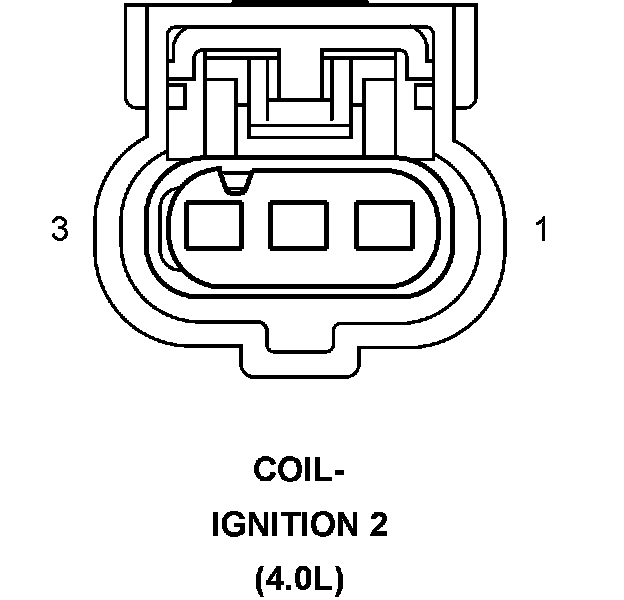

Connector:
Name : COIL-IGNITION 2
Color :
# of pins : 3
Qualifier : (4.0L)




Pin Circuit Description
1 - -
2 K85 16DB/YL COIL CONTROL 2
3 F344 16BR/GY FUSED ASD RELAY OUTPUT

Component Location - 16




Component Location - 17
