Coil-Ignition 3

Component ID: 61
Component : COIL-IGNITION 3

Connector:

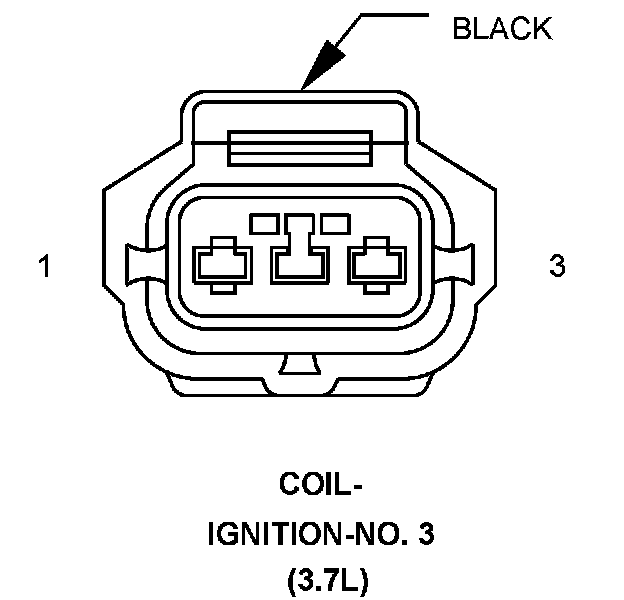

Name : COIL-IGNITION 3
Color : BLACK
# of pins : 3
Qualifier : (3.7L)




Pin Circuit Description
1 K93 16DB COIL CONTROL 3
2 F344 16BR/GY FUSED ASD RELAY OUTPUT
3 - -

Component Location - 15




Component Location - 17






Connector:

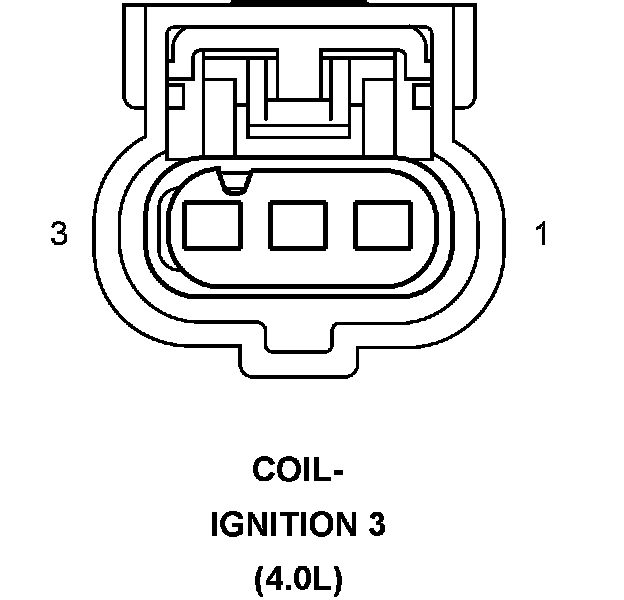

Name : COIL-IGNITION 3
Color :
# of pins : 3
Qualifier : (4.0L)




Pin Circuit Description
1 - -
2 K93 16DB COIL CONTROL 3
3 F344 16BR/GY FUSED ASD RELAY OUTPUT

Component Location - 15




Component Location - 17
