Coil-Ignition 4

Component ID: 62
Component : COIL-IGNITION 4

Connector:

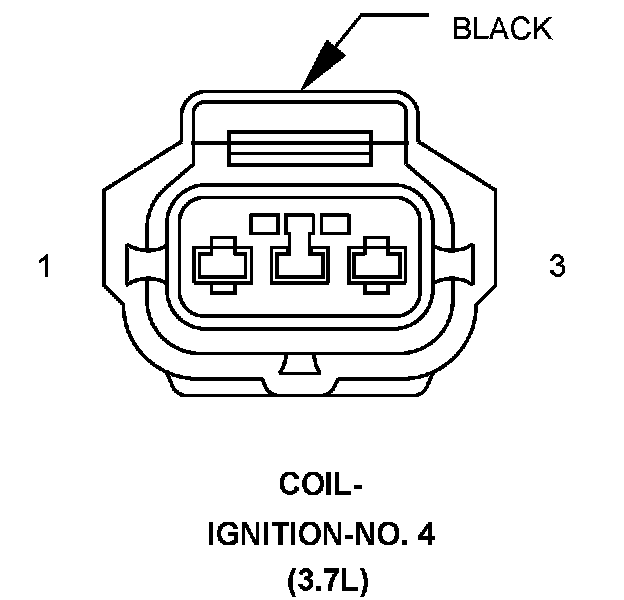

Name : COIL-IGNITION 4
Color : BLACK
# of pins : 3
Qualifier : (3.7L)




Pin Circuit Description
1 K15 16DB/GY COIL CONTROL 4
2 F344 16BR/GY FUSED ASD RELAY OUTPUT
3 - -

Component Location - 16




Component Location - 17






Connector:
Name : COIL-IGNITION 4
Color :
# of pins : 3
Qualifier : (4.0L)




Pin Circuit Description
1 - -
2 K15 16DB/GY COIL CONTROL 4
3 F344 16BR/GY FUSED ASD RELAY OUTPUT

Component Location - 16




Component Location - 17
