Coil-Ignition 5

Component ID: 63
Component : COIL-IGNITION 5

Connector:
Name : COIL-IGNITION 5
Color : BLACK
# of pins : 3
Qualifier : (3.7L)




Pin Circuit Description
1 K16 16DB/YL COIL CONTROL 5
2 F344 16BR/GY FUSED ASD RELAY OUTPUT
3 - -

Component Location - 15




Component Location - 17

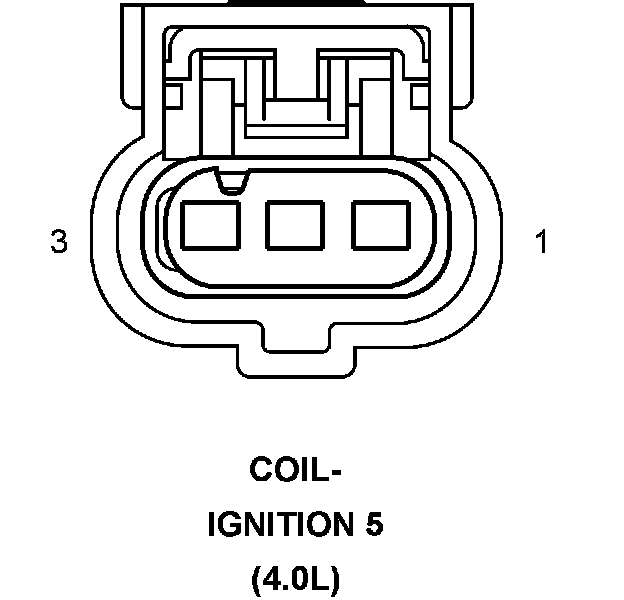

Connector:
Name : COIL-IGNITION 5
Color :
# of pins : 3
Qualifier : (4.0L)
Gender : MALE




Pin Circuit Description
1 - -
2 K16 16DB/YL COIL CONTROL 5
3 F344 16BR/GY FUSED ASD RELAY OUTPUT

Component Location - 15




Component Location - 17
