Leak Detector, Evaporative System

Component ID: 430

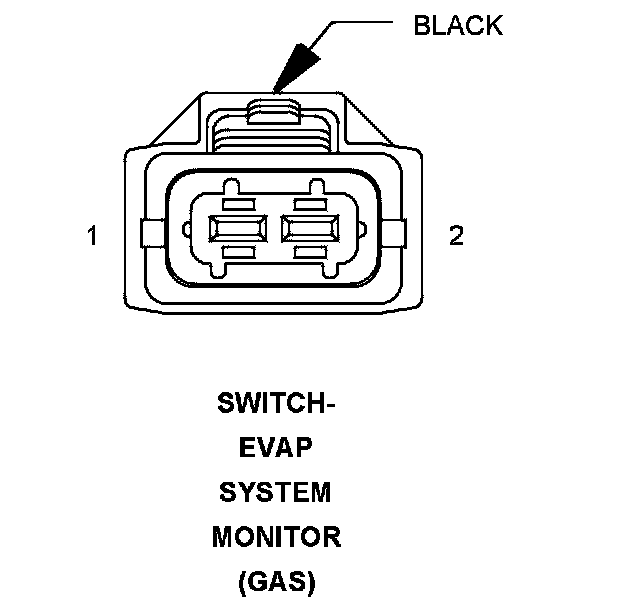

Component : SWITCH-EVAP SYSTEM MONITOR

Connector:
Name : SWITCH-EVAP SYSTEM MONITOR
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 Z913 18BK/LB GROUND
2 K107 18VT/WT ESM SIGNAL

Component Location - 61
