Neutral Safety Switch

Component ID: 429
Component : SWITCH-CLUTCH INTERLOCK

Connector:

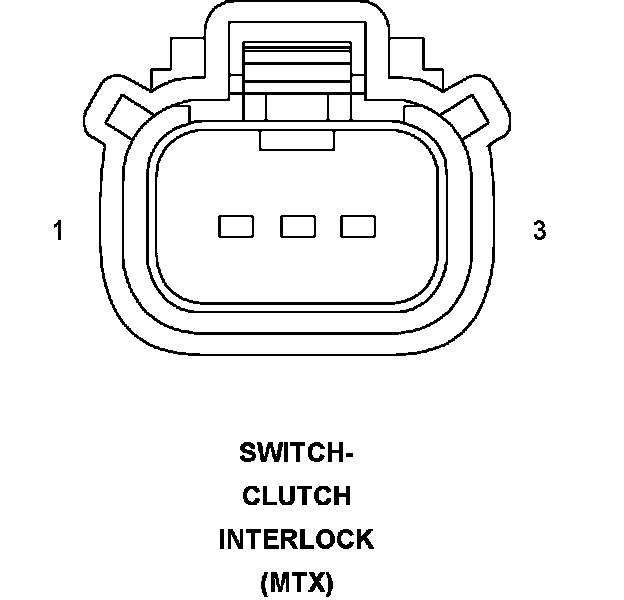

Name : SWITCH-CLUTCH INTERLOCK
Color :
# of pins : 3
Qualifier : (MTX)




Pin Circuit Description
1 T26 20DG/OR CLUTCH UPSTOP SIGNAL
Pin Circuit Description
1 T26 18DG/OR CLUTCH UPSTOP SIGNAL
2 T141 20YL/OR CLUTCH INTERLOCK SIGNAL
2 T41 18YL/DB CLUTCH INTERLOCK SIGNAL
3 Z904 18BK GROUND
3 Z904 18BK/PK GROUND

Component Location - 26




Component Location - 27
