Latch-Door-Driver

Component ID: 173
Component : LATCH-DOOR-DRIVER

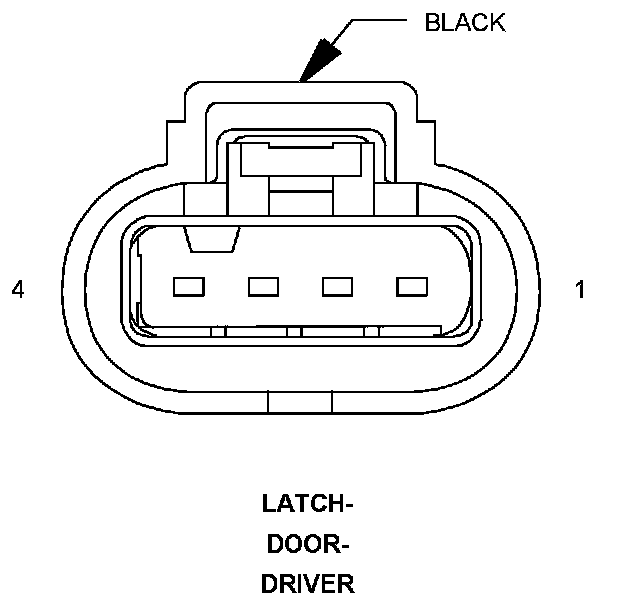

Connector:
Name : LATCH-DOOR-DRIVER
Color : BLACK
# of pins : 4
Qualifier : (LHD)
Gender : MALE




Pin Circuit Description
1 P910 18TN/LG DRIVER DOOR UNLOCK DRIVER
2 P930 18TN/WT DRIVER DOOR LOCK DRIVER
3 G75 20VT DRIVER DOOR AJAR SWITCH SENSE
4 Z913 18BK/PK GROUND

Component Location - 51

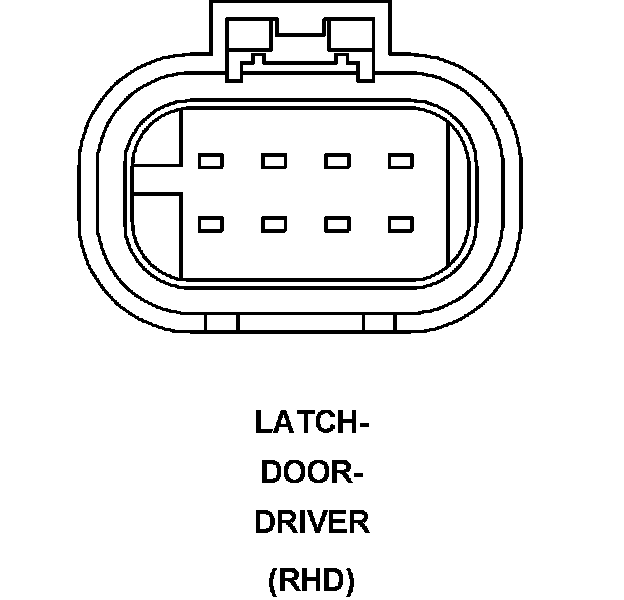

Connector:
Name : LATCH-DOOR-DRIVER
Color :
# of pins : 8
Qualifier : (RHD)




Pin Circuit Description
1 - -
2 - -
3 P237 18DG/TN SECONDARY DOOR UNLOCK RELAY OUTPUT
4 P235 18LG/TN SECONDARY DOOR LOCK RELAY OUTPUT
5 P910 18TN/LG DRIVER DOOR UNLOCK DRIVER
6 P930 18TN/WT DRIVER DOOR LOCK DRIVER
7 G75 20VT PASSENGER DOOR AJAR SWITCH SENSE
8 Z913 18BK/PK GROUND

Component Location - 51
