Latch-Door-Left Rear

Component ID: 174
Component : LATCH-DOOR-LEFT REAR

Connector:
Name : LATCH-DOOR-LEFT REAR
Color : BLACK
# of pins : 4
Qualifier : (LHD)
Gender : MALE




Pin Circuit Description
1 P5 16TN/OR LEFT REAR DOOR UNLOCK DRIVER
2 P32 16TN/VT LEFT REAR DOOR LOCK DRIVER
3 G77 20VT/GY LEFT REAR DOOR AJAR SWITCH SENSE
4 Z913 16BK/LG GROUND

Component Location - 52






Connector:

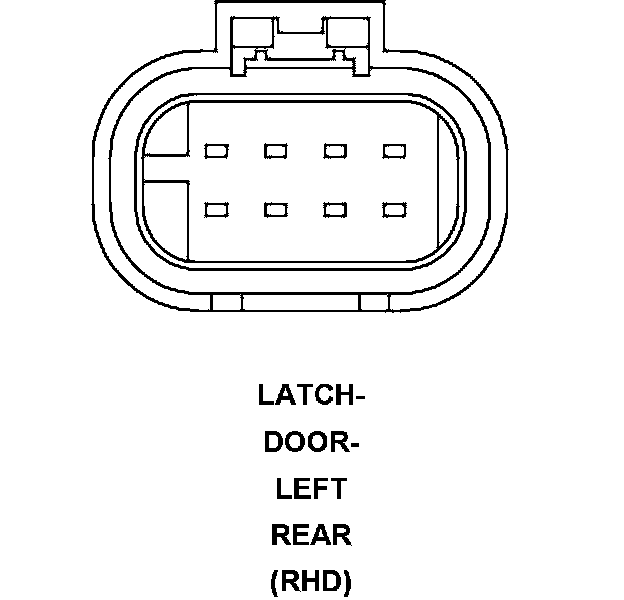

Name : LATCH-DOOR-LEFT REAR
Color :
# of pins : 8
Qualifier : (RHD)




Pin Circuit Description
1 - -
2 - -
3 P237 16DG/TN SECONDARY DOOR UNLOCK RELAY OUTPUT
4 P235 16LG/TN SECONDARY DOOR LOCK RELAY OUTPUT
5 P5 18TN/OR LEFT REAR DOOR UNLOCK DRIVER
6 P32 18TN/VT LEFT REAR DOOR LOCK DRIVER
7 G77 20 VT/GY LEFT REAR DOOR AJAR SWITCH SENSE
8 Z913 16BK/LG GROUND

Component Location - 52
