Latch-Door-Liftgate

Component ID: 175
Component : LATCH-DOOR-LIFTGATE

Connector:

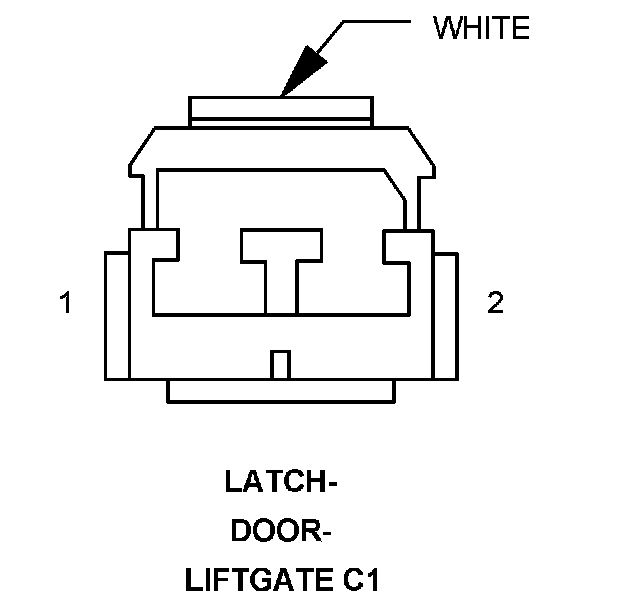

Name : LATCH-DOOR-LIFTGATE C1
Color : WHITE
# of pins : 2




Pin Circuit Description
1 Z920 20BK/DG GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE

Component Location - 67






Connector:

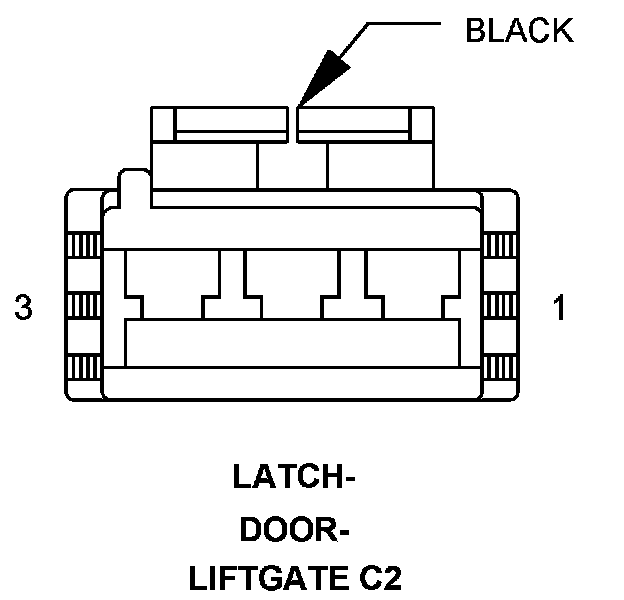

Name : LATCH-DOOR-LIFTGATE C2
Color : BLACK
# of pins : 3




Pin Circuit Description
1 P304 16LG/DB LIFTGATE LOCK DRIVER
2 - -
3 P306 16LG/LB LIFTGATE UNLOCK DRIVER

Component Location - 67
