Latch-Door-Passenger

Component ID: 176
Component : LATCH-DOOR-PASSENGER

Connector:

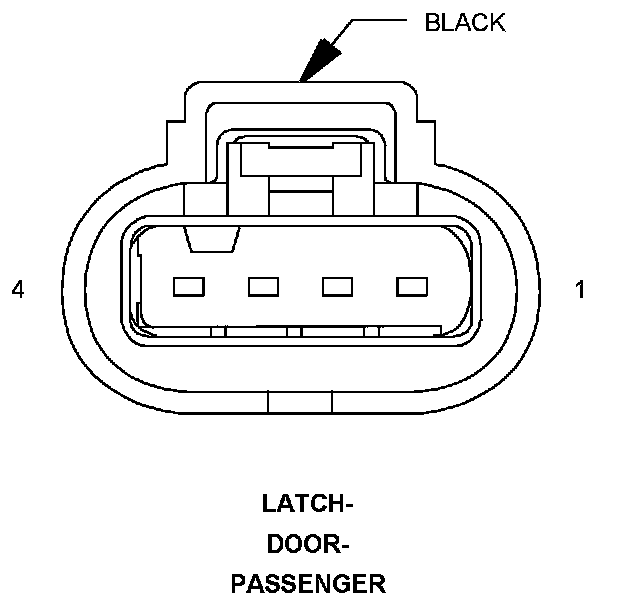

Name : LATCH-DOOR-PASSENGER
Color : BLACK
# of pins : 4
Qualifier : (LHD)




Pin Circuit Description
1 P940 18TN/BR PASSENGER DOOR UNLOCK DRIVER
2 P920 18LG/GY PASSENGER DOOR LOCK DRIVER
3 G74 20VT/WT PASSENGER DOOR AJAR SWITCH SENSE
4 Z913 18BK/YL GROUND

Component Location - 51






Connector:

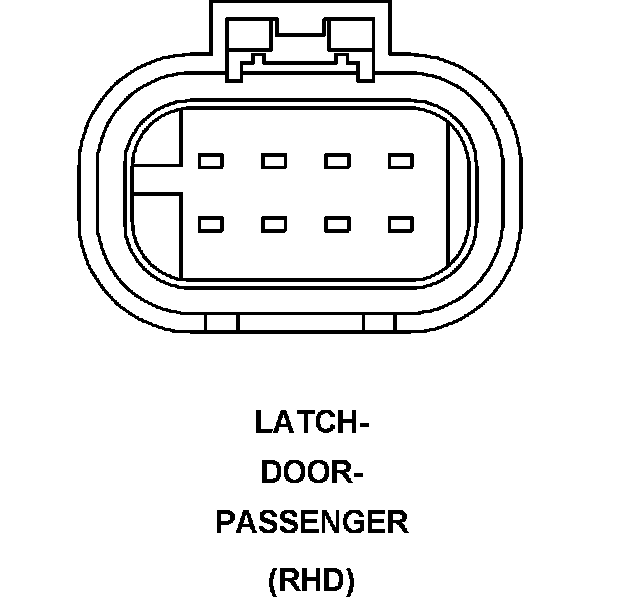

Name : LATCH-DOOR-PASSENGER
Color :
# of pins : 8
Qualifier : (RHD)




Pin Circuit Description
1 - -
2 - -
3 P237 18DG/TN SECONDARY DOOR UNLOCK RELAY OUTPUT
4 P235 18LG/TN SECONDARY DOOR LOCK RELAY OUTPUT
5 P940 18TN/BR PASSENGER DOOR UNLOCK DRIVER
6 P920 18LG/GY PASSENGER DOOR LOCK DRIVER
7 G74 20VT/WT DRIVER DOOR AJAR SWITCH SENSE
8 Z913 18BK/YL GROUND

Component Location - 51
