Latch-Door-Right Rear

Component ID: 177
Component : LATCH-DOOR-RIGHT REAR

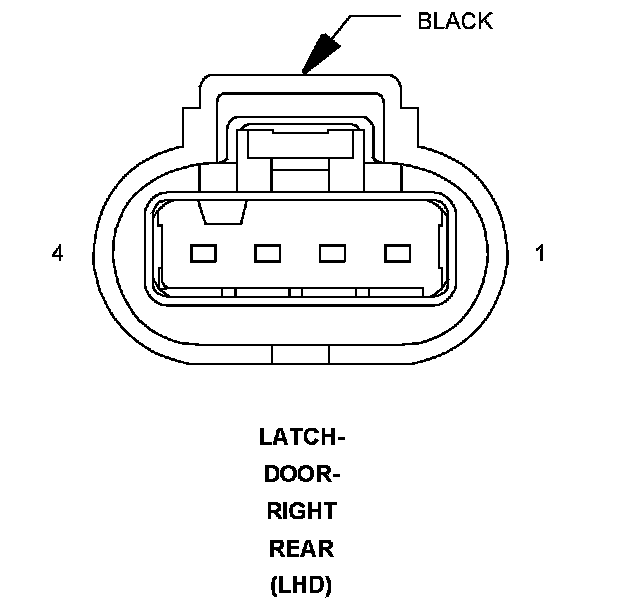

Connector:
Name : LATCH-DOOR-RIGHT REAR
Color : BLACK
# of pins : 4
Qualifier : (LHD)




Pin Circuit Description
1 P34 16TN/LB RIGHT REAR DOOR UNLOCK DRIVER
2 P38 16TN/DB RIGHT REAR DOOR LOCK DRIVER
3 G76 20VT/YL RIGHT REAR DOOR AJAR SWITCH SENSE
4 Z913 18BK/GY GROUND

Component Location - 52

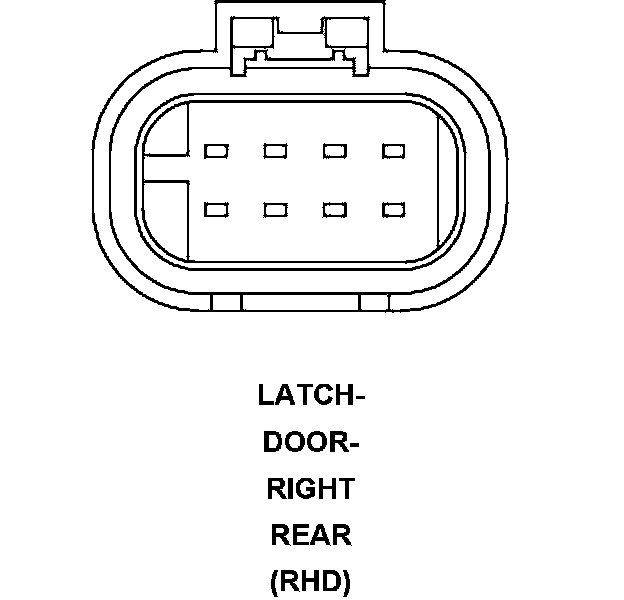

Connector:
Name : LATCH-DOOR-RIGHT REAR
Color :
# of pins : 8
Qualifier : (RHD)
Gender : MALE




Pin Circuit Description
1 - -
2 - -
3 P237 16DG/TN SECONDARY DOOR UNLOCK RELAY OUTPUT
4 P235 16LG/TN SECONDARY DOOR LOCK RELAY OUTPUT
5 P34 16TN/LB RIGHT REAR DOOR UNLOCK DRIVER
6 P38 16TN/DB RIGHT REAR DOOR LOCK DRIVER
7 G76 20VT/YL RIGHT REAR DOOR AJAR SWITCH SENSE
8 Z913 18BK/GY GROUND

Component Location - 52
