Relay-Secondary Door Lock

Component ID: 235
Component : RELAY-SECONDARY DOOR LOCK

Connector:
Name : RELAY-SECONDARY DOOR LOCK
Color :

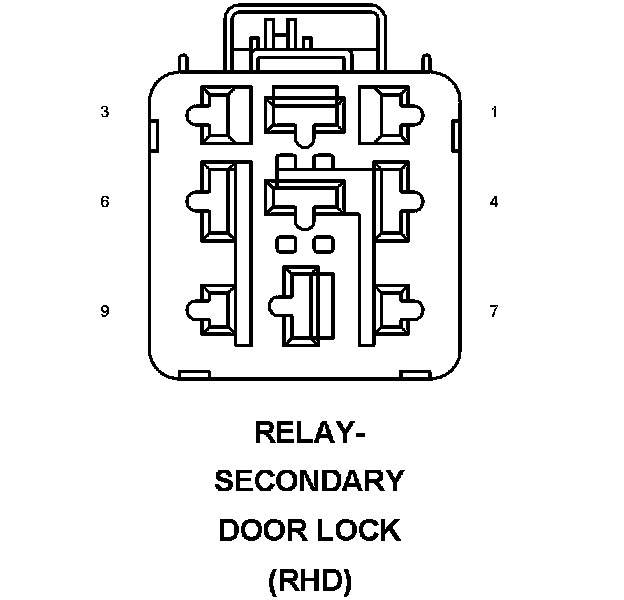

# of pins : 9
Gender : FEMALE




Pin Circuit Description
1 P235 14LG/TN SECONDARY DOOR LOCK RELAY OUTPUT
2 P390 18LG/LB SECONDARY DOOR LOCK RELAY CONTROL
3 Z913 14BK/DB GROUND
4 A959 14RD FUSED B(+)
5 A959 14RD FUSED B(+)
6 - -
7 - -
8 - -
9 - -

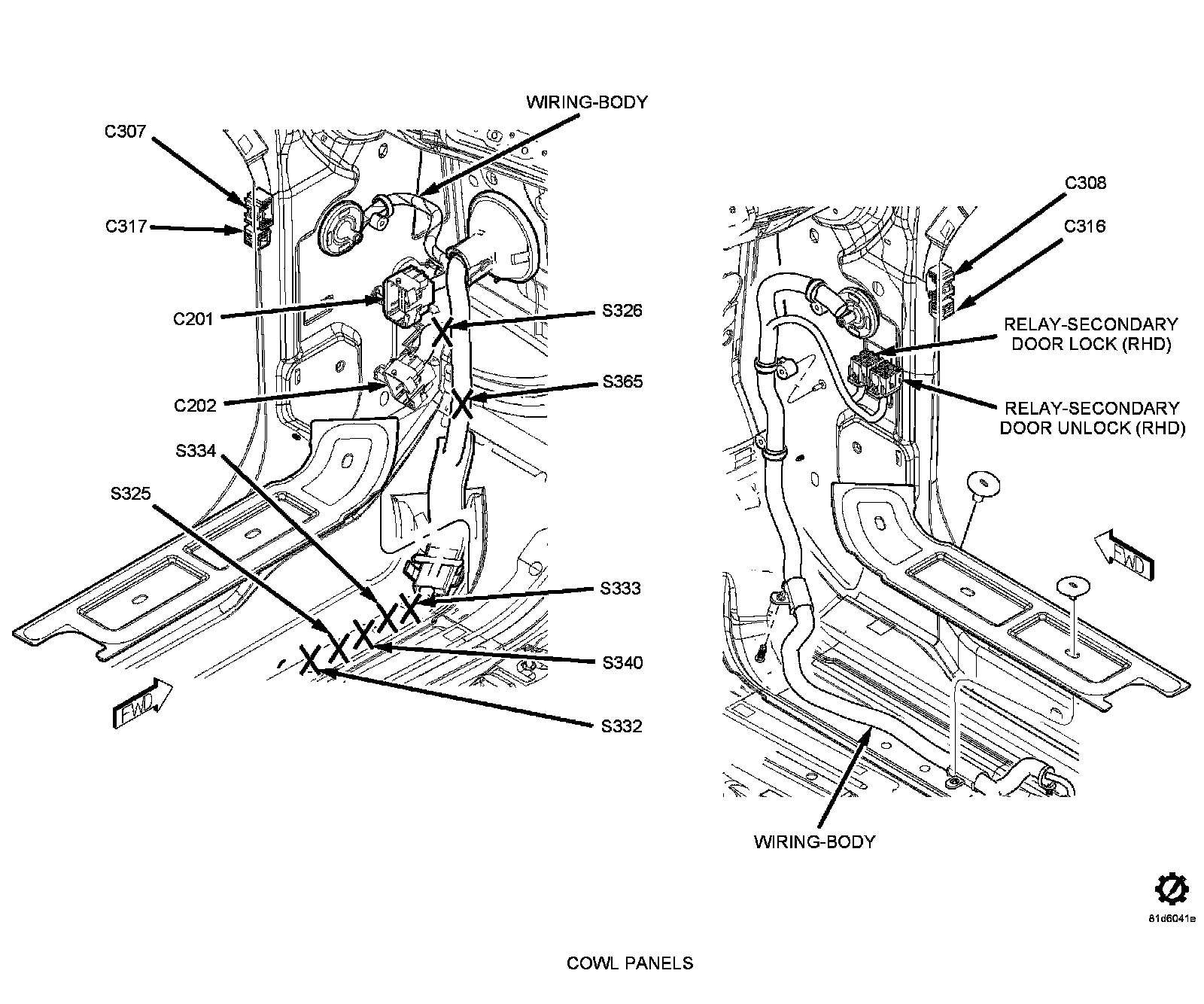

Component Location - 39

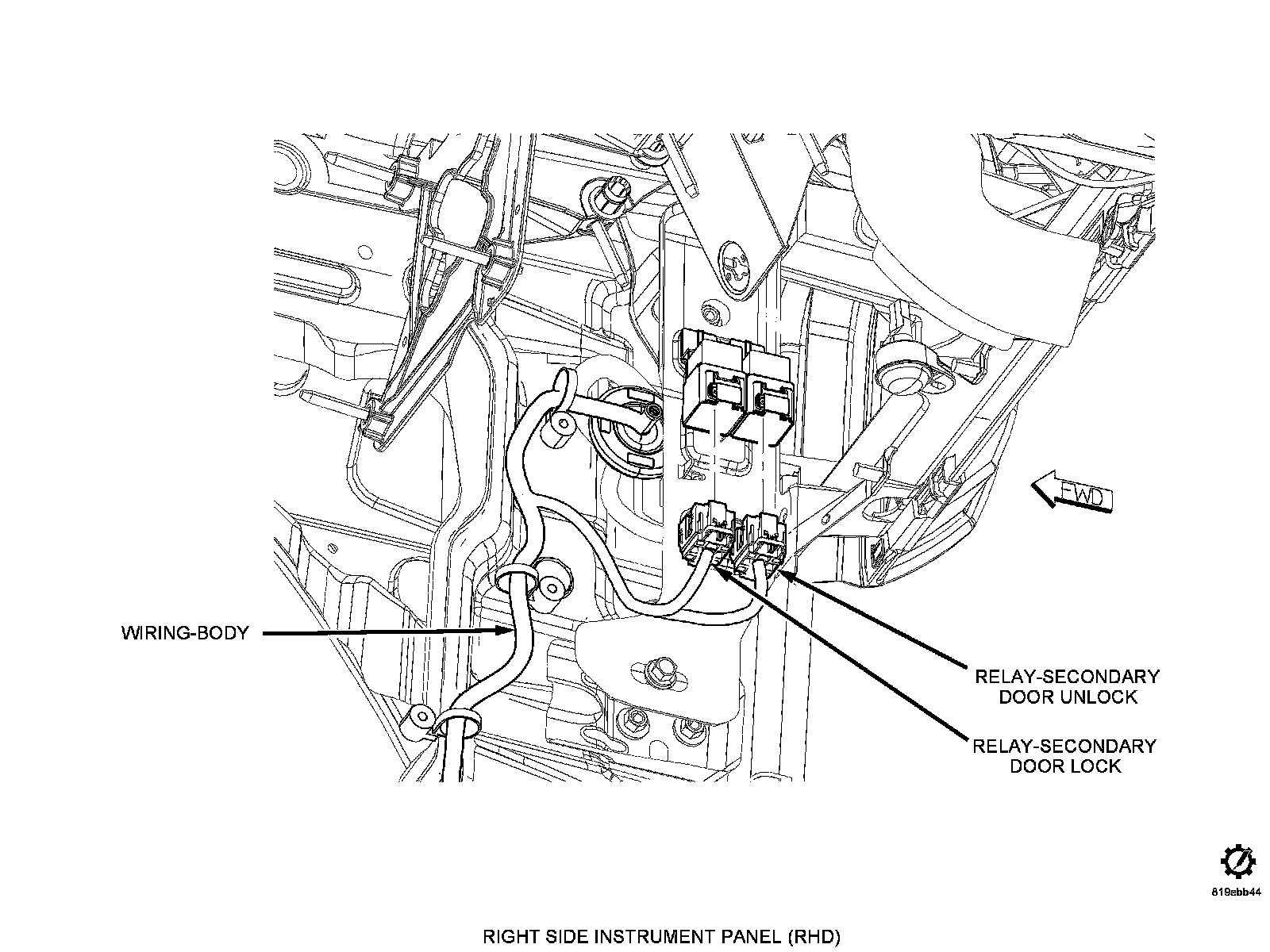

Component Location - 37
