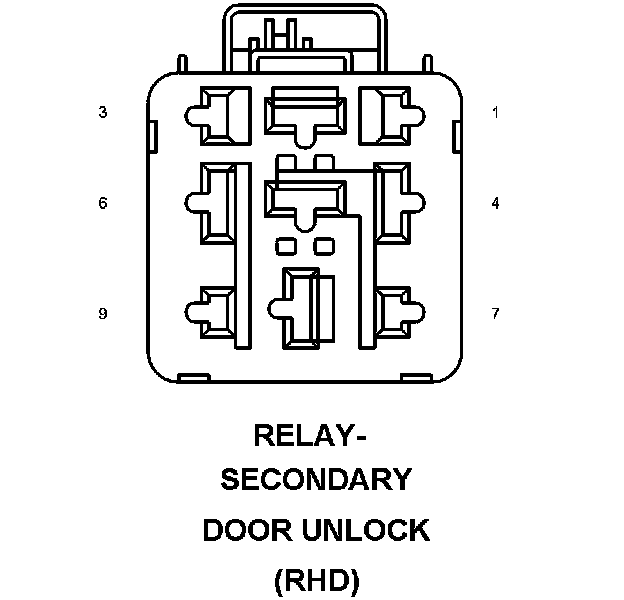

Relay-Secondary Door Unlock

Component ID: 236
Component : RELAY-SECONDARY DOOR UNLOCK

Connector:
Name : RELAY-SECONDARY DOOR UNLOCK
Color :
# of pins : 9
Gender : FEMALE




Pin Circuit Description
1 P237 14DG/TN SECONDARY DOOR UNLOCK RELAY OUTPUT
2 P391 18LG/DB SECONDARY DOOR UNLOCK RELAY CONTROL
3 Z913 14BK/DG GROUND
4 A959 14RD FUSED B(+)
5 A959 14RD FUSED B(+)
6 - -
7 - -
8 - -
9 - -

Component Location - 39




Component Location - 37
