Motor-Seat Adjuster-Driver Horizontal

Component ID: 208

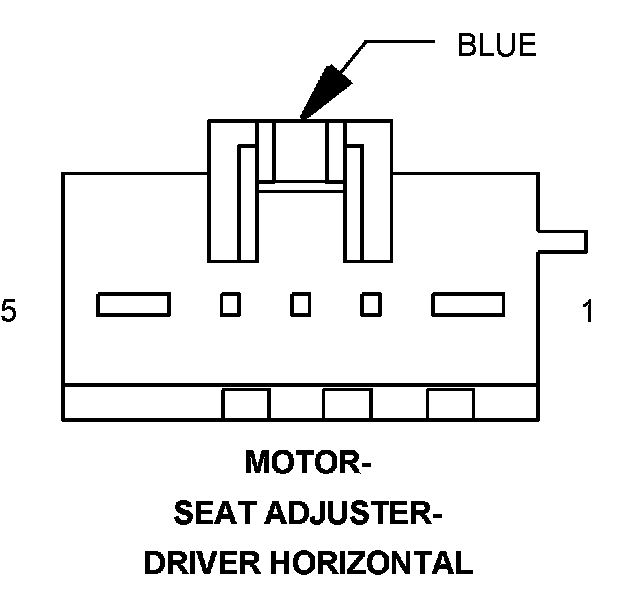

Component : MOTOR-SEAT ADJUSTER-DRIVER HORIZONTAL

Connector:
Name : MOTOR-SEAT ADJUSTER-DRIVER HORIZONTAL
Color : BLUE
# of pins : 5
Gender : FEMALE




Pin Circuit Description
1 P15 14LG/WT DRIVER SEAT HORIZONTAL FORWARD DRIVER
2 - -
3 - -
4 - -
5 P17 14LG/DG DRIVER SEAT HORIZONTAL REARWARD DRIVER

Component Location - 54
