Motor-Seat Adjuster-Front Driver Vertical

Component ID: 209
Component : MOTOR-SEAT ADJUSTER-FRONT DRIVER VERTICAL

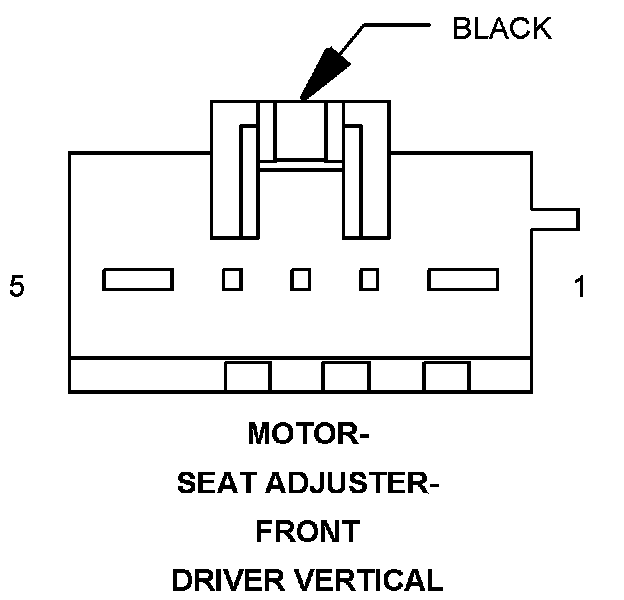

Connector:
Name : MOTOR-SEAT ADJUSTER-FRONT DRIVER VERTICAL
Color : BLACK
# of pins : 5
Gender : FEMALE




Pin Circuit Description
1 P21 14LG/TN DRIVER SEAT FRONT DOWN DRIVER
2 - -
3 - -
4 - -
5 P19 14LG/LB DRIVER SEAT FRONT UP DRIVER

Component Location - 54
