Motor-Window-Driver

Component ID: 213

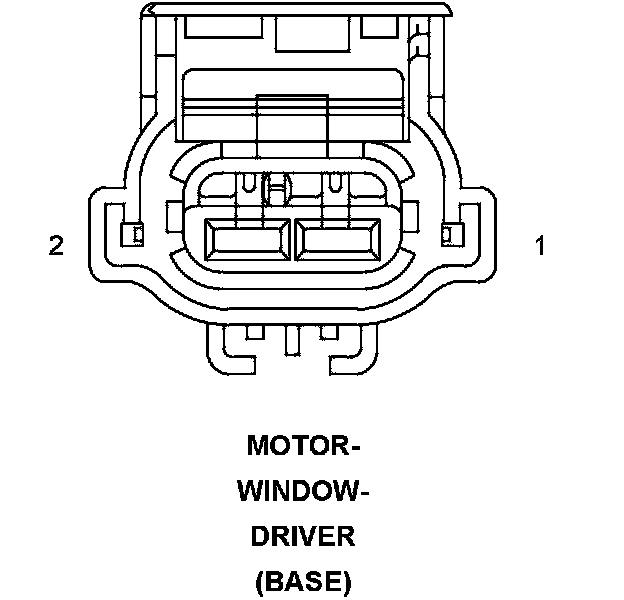

Component : MOTOR-WINDOW-DRIVER

Connector:
Name : MOTOR-WINDOW-DRIVER
Color :
# of pins : 2
Qualifier : (BASE)




Pin Circuit Description
1 Q11 14OR/LG DRIVER WINDOW DRIVER (UP)
2 Q21 14OR/WT DRIVER WINDOW DRIVER (DOWN)

Component Location - 51
