Motor-Window-Passenger

Component ID: 216
Component : MOTOR-WINDOW-PASSENGER

Connector:
Name : MOTOR-WINDOW-PASSENGER
Color :
# of pins : 2
Qualifier : (LHD)




Pin Circuit Description
1 Q12 14OR/BR PASSENGER WINDOW DRIVER (DOWN)
Pin Circuit Description
1 Q312 14DB/OR RIGHT FRONT WINDOW EXPRESS UP DRIVER
2 Q22 14OR/VT PASSENGER WINDOW DRIVER (UP)
2 Q322 14LG/OR RIGHT FRONT WINDOW EXPRESS DOWN DRIVER

Component Location - 51






Connector:

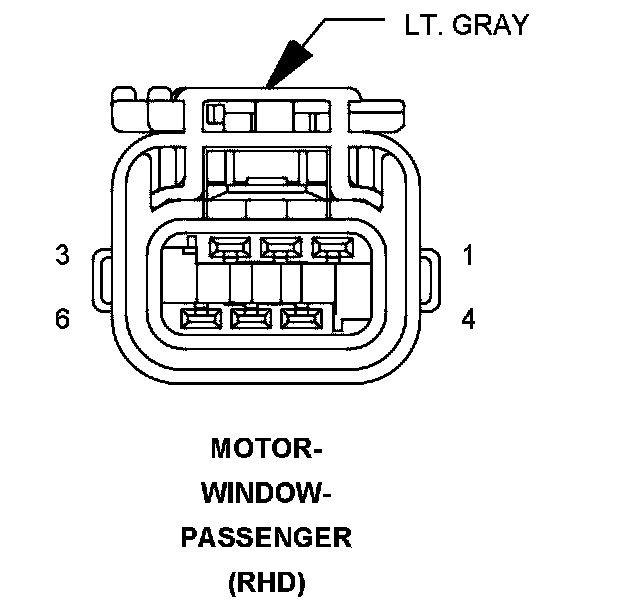

Name : MOTOR-WINDOW-PASSENGER
Color : LT. GRAY
# of pins : 6
Qualifier : (RHD)




Pin Circuit Description
1 Q992 20BK/GY PASSENGER WINDOW HALL SENSOR RETURN
2 - -
3 Q311 14OR/LB LEFT FRONT WINDOW EXPRESS UP DRIVER
4 Q306 20OR/DB PASSENGER WINDOW HALL SENSOR SUPPLY
5 Q302 20OR/LG PASSENGER WINDOW HALL SENSOR A SIGNAL
6 Q321 14OR/DB LEFT FRONT WINDOW EXPRESS DOWN DRIVER

Component Location - 51
