Radiator Cooling Fan Motor

Component ID: 68
Component : FAN MODULE-RADIATOR COOLING

Connector:

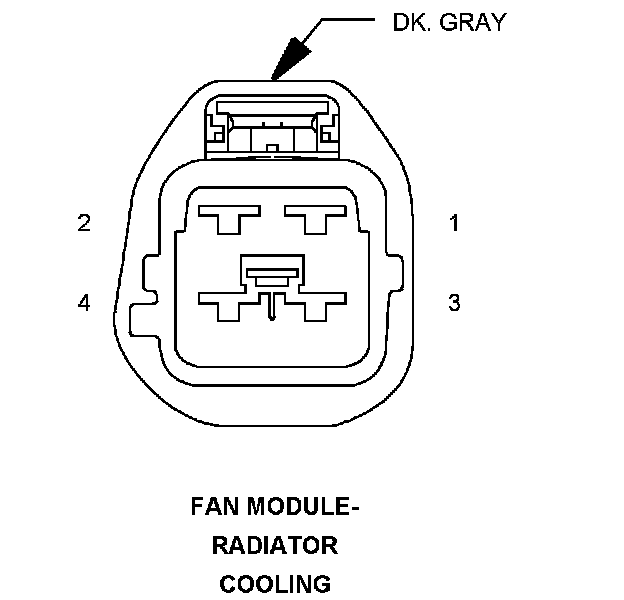

Name : FAN MODULE-RADIATOR COOLING
Color : DK. GRAY
# of pins : 4




Pin Circuit Description
1 N173 10DB/VT HIGH SPEED RAD FAN RELAY OUTPUT
2 Z908E 10BK GROUND
3 N23 10DB/DG LOW SPEED RAD FAN CONTROL (PWM)
4 - -

Component Location - 2




Component Location - 3
