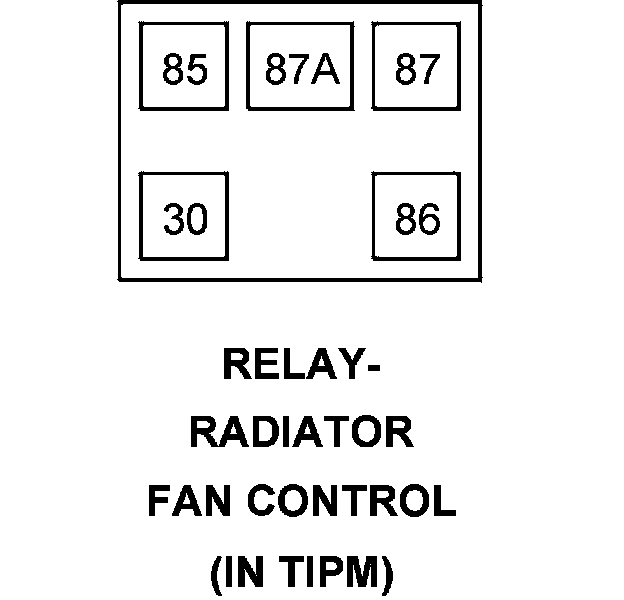

Relay-Radiator Fan Control

Component ID: 229
Component : RELAY-RADIATOR FAN CONTROL

Connector:
Name : RELAY-RADIATOR FAN CONTROL
Color :
# of pins : 0




30 INTERNAL FUSED B(+)
85 INTERNAL FUSED B(+)
86 INTERNAL RAD FAN CONTROL RELAY CONTROL
87 N173 10DB/VT HIGH SPEED RAD FAN RELAY OUTPUT
87A - -
