System Diagram

Component ID: 224
Component : RADIO

Connector:

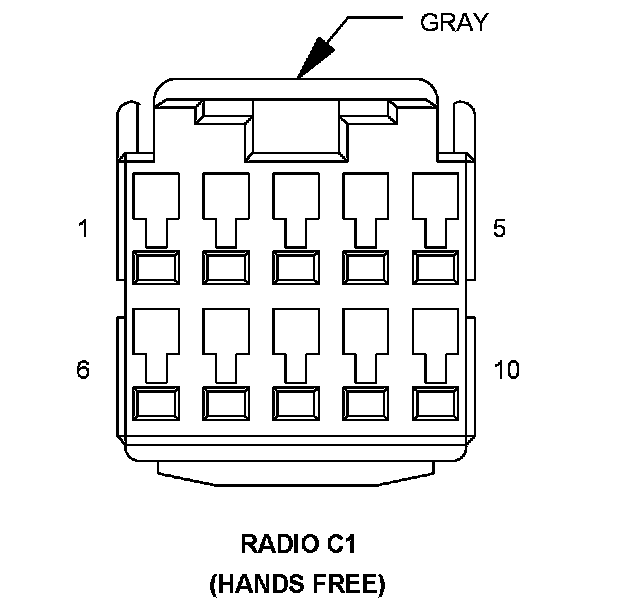

Name : RADIO C1
Color : GRAY
# of pins : 10
Qualifier : (HANDS FREE)




Pin Circuit Description
1 X722 22LB/DG MICROPHONE 2 IN (+)
2 X712 22DG/LB RIGHT AUDIO OUTPUT
3 - -
4 X793 22DG/YL MICROPHONE FEED
5 - -
6 X795 22DG COMMON AUDIO OUTPUT
7 X792 22LB/DG MICROPHONE IN (-)
8 X835 22OR/GY SENSOR GROUND
9 - -
10 - -

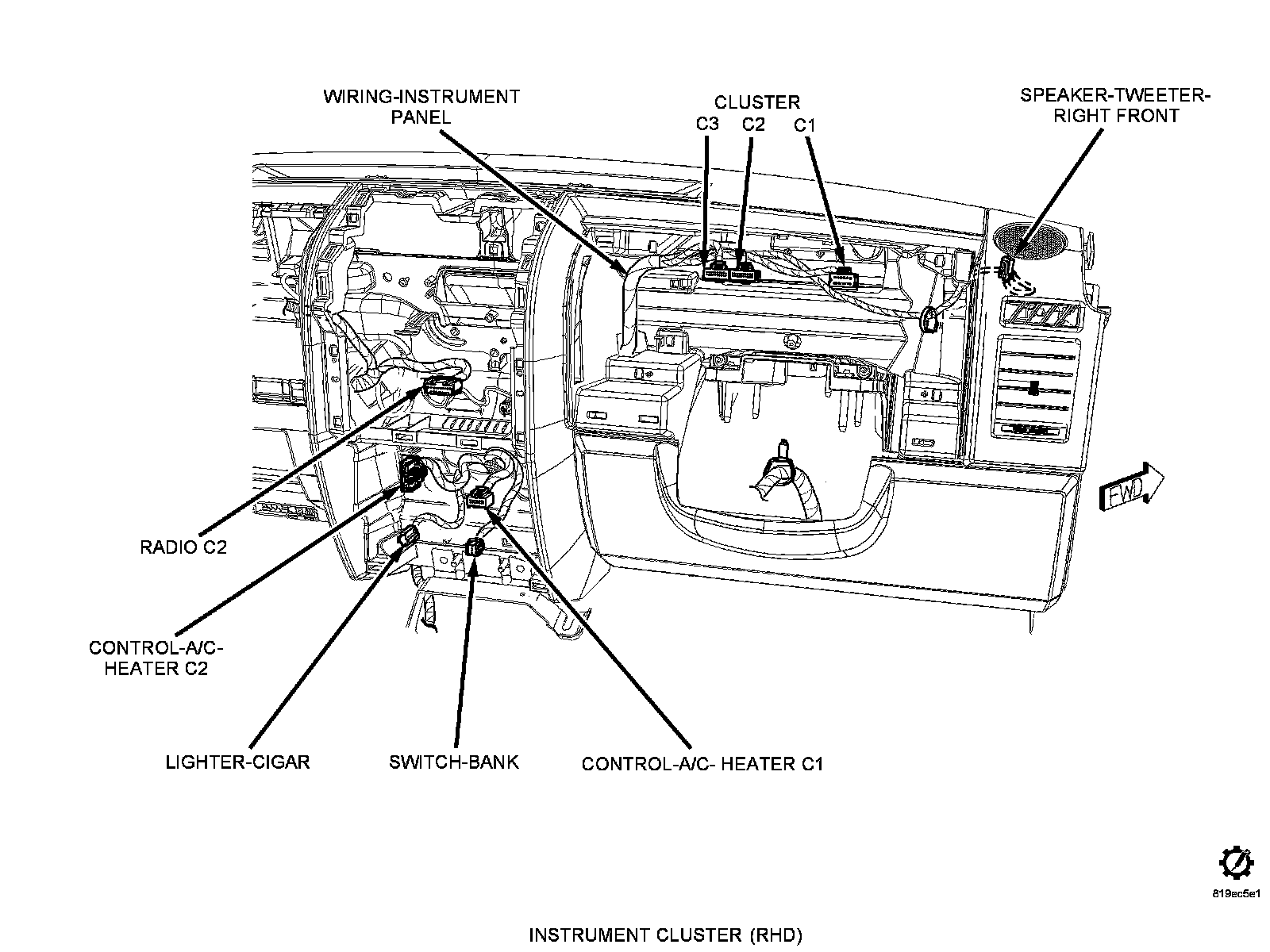

Component Location - 43




Component Location - 48






Connector:
Name : RADIO C2
Color : GRAY
# of pins : 22




Pin Circuit Description
1 14YL/RD FUSED B(+) (I.O.D.)
2 D264 20WT/OR CAN INTERIOR BUS (125K) (-)
3 - -
4 - -
5 - -
6 - -
7 X62 18GY/OR AMPLIFIED ANTENNA FEED
8 X205 18GY/LG LEFT REAR SPEAKER (+)
9 X295 18GY/DG LEFT REAR SPEAKER (-)
10 X206 18DG/LG RIGHT REAR SPEAKER (+)
11 X296 18DG/GY RIGHT REAR SPEAKER (-)
12 Z910 18BK/WT GROUND
13 D265 20WT/GY CAN INTERIOR BUS (125K) (+)
14 - -
15 - -
16 - -
17 - -
18 - -
19 X202 18DG/VT RIGHT FRONT SPEAKERS (+)
20 X292 18DG/YL RIGHT FRONT SPEAKERS (-)
21 X201 18GY/VT LEFT FRONT SPEAKERS (+)
22 X291 18GY/YL LEFT FRONT SPEAKERS (-)

Component Location - 43




Component Location - 48






Connector:

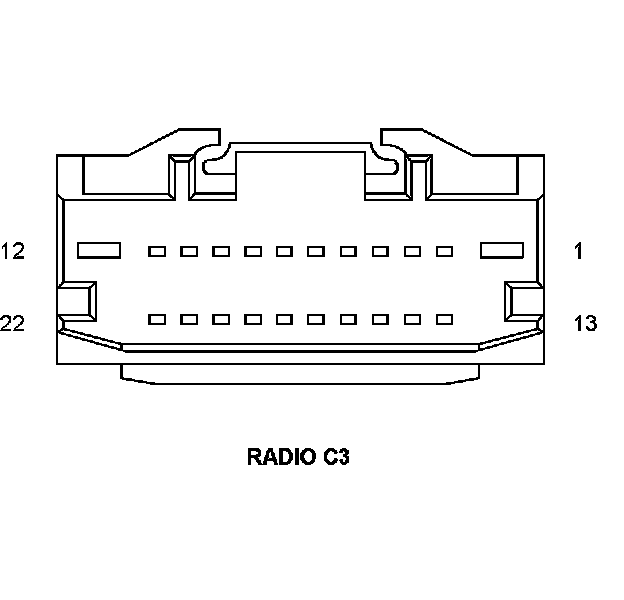

Name : RADIO C3
Color :
# of pins : 22




Pin Circuit Description
1 X552 22GY/LB AUDIO RETURN 3
2 - -
3 - -
4 - -
5 - -
6 X534 22GY/BR VIDEO SIGNAL 1
7 X535 22GY/YL VIDEO COMMON 1
8 X536 18NA VDO-VIDEO SHIELD 1
9 X541 22GY/LB VIDEO SIGNAL 2
10 X542 18GY/YL VIDEO COMMON 2
11 X543 18NA VIDEO SHIELD 2
12 X546 22GY/OR AUDIO RETURN 2
13 X551 22DG/VT AUDIO LEFT 3
14 X550 22DG/YL AUDIO RIGHT 3
15 - -
16 - -
17 - -
18 X539 22DG/TN AUDIO LEFT 1
19 X540 22GY/VT AUDIO RETURN 1
20 X538 22DG/WT AUDIO RIGHT 1
21 X545 22DG/LB AUDIO LEFT 2
22 X544 22DG/DB AUDIO RIGHT 2

Component Location - 43




Component Location - 48
