Heater-Seat Back-Left

Component ID: 139
Component : HEATER-SEAT BACK-LEFT

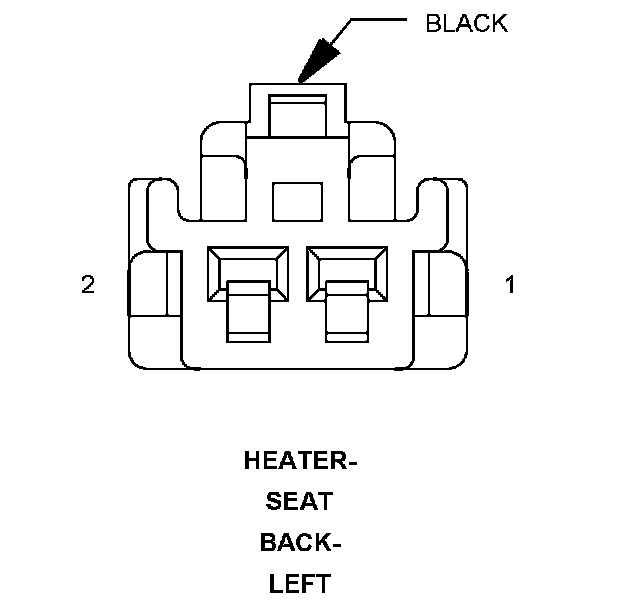

Connector:
Name : HEATER-SEAT BACK-LEFT
Color : BLACK
# of pins : 2




Pin Circuit Description
1 P187 18DG/RD LEFT SEAT HEATER B(+) DRIVER
2 Z914 18BK GROUND



Connector:
Name : HEATER-SEAT BACK-LEFT
Color : BLACK
# of pins : 2
Qualifier : (COMPONENT SIDE)




Pin Circuit Description
1 P187 18DG/RD LEFT SEAT HEATER B(+) DRIVER
2 Z914 18BK GROUND
