Heater-Seat Back-Right

Component ID: 140
Component : HEATER-SEAT BACK-RIGHT

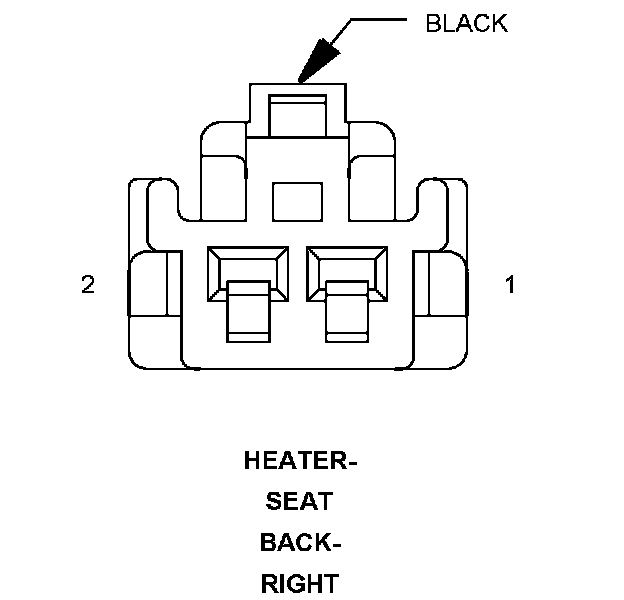

Connector:
Name : HEATER-SEAT BACK-RIGHT
Color : BLACK
# of pins : 2




Pin Circuit Description
1 P188 18DG/RD RIGHT SEAT HEATER B(+) DRIVER
2 Z914 18BK GROUND

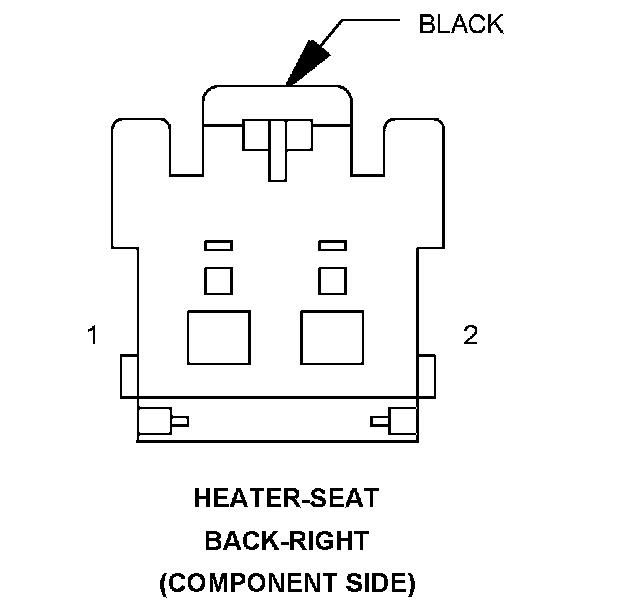

Connector:
Name : HEATER-SEAT BACK-RIGHT
Color : BLACK
# of pins : 2
Qualifier : (COMPONENT SIDE)




Pin Circuit Description
1 P188 18DG/RD RIGHT SEAT HEATER B(+) DRIVER
2 Z914 18BK GROUND
