Heater-Seat Cushion-Left

Component ID: 141
Component : HEATER-SEAT CUSHION-LEFT

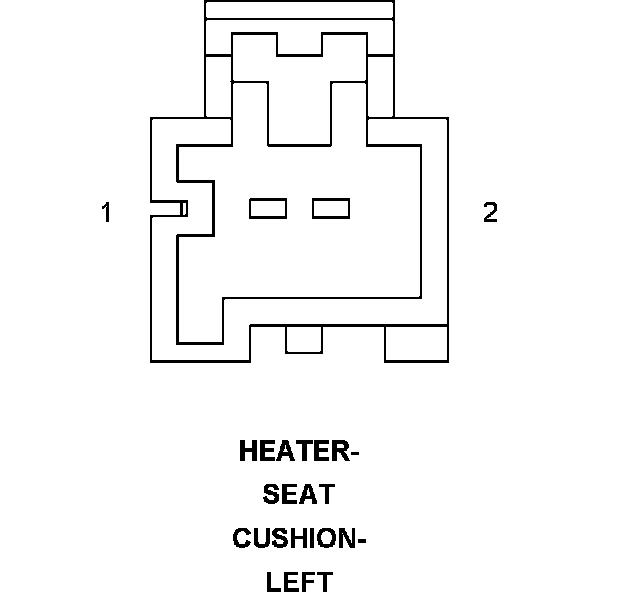

Connector:
Name : HEATER-SEAT CUSHION-LEFT
Color :
# of pins : 2




Pin Circuit Description
1 P187 16LG/BR LEFT SEAT HEATER B(+) DRIVER
2 Z914 16BK GROUND

Component Location - 54

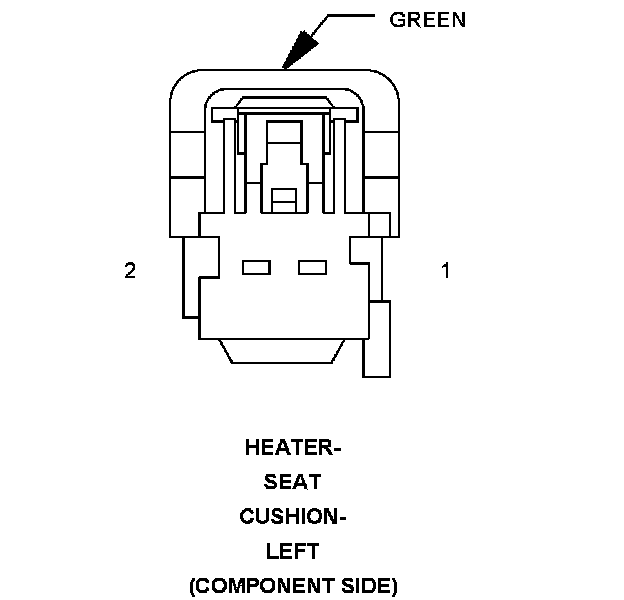

Connector:
Name : HEATER-SEAT CUSHION-LEFT
Color : GREEN
# of pins : 2
Qualifier : (COMPONENT SIDE)




Pin Circuit Description
1 P187 18DG/RD LEFT SEAT HEATER B(+) DRIVER
2 Z914 18BK GROUND

Component Location - 54
