Heater-Seat Cushion-Right

Component ID: 142
Component : HEATER-SEAT CUSHION-RIGHT

Connector:
Name : HEATER-SEAT CUSHION-RIGHT
Color :
# of pins : 2




Pin Circuit Description
1 P188 16LG/VT RIGHT SEAT HEATER B(+) DRIVER
2 Z914 16BK GROUND

Component Location - 54

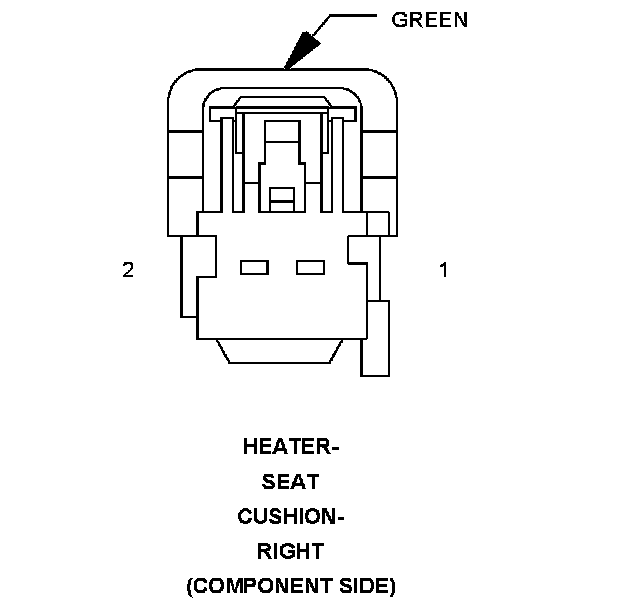

Connector:
Name : HEATER-SEAT CUSHION-RIGHT
Color : GREEN
# of pins : 2
Qualifier : (COMPONENT SIDE)




Pin Circuit Description
1 P188 18DG/RD RIGHT SEAT HEATER B(+) DRIVER
2 Z914 18BK GROUND

Component Location - 54
