Shifter A/T

Component ID: 19
Component : ASSEMBLY-SHIFT LEVER

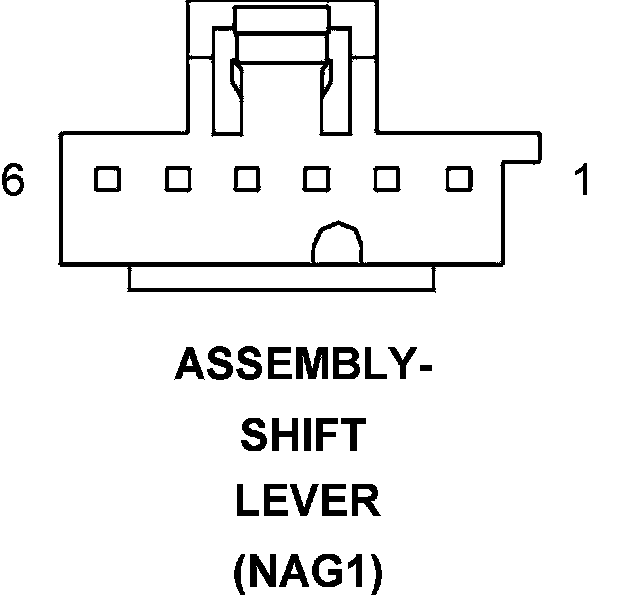

Connector:
Name : ASSEMBLY-SHIFT LEVER
Color :
# of pins : 6
Qualifier : (NAG1)
Gender : FEMALE




Pin Circuit Description
1 F1 20PK/WT IGNITION SWITCH OUTPUT (UNLOCK-RUN-START)
2 Z910 18BK/GY GROUND
3 L51 18WT/DG BRAKE LAMP SWITCH OUTPUT
4 - -
5 D65 20WT/LG CAN C BUS (+)
6 D64 20WT/LB CAN C BUS (-)

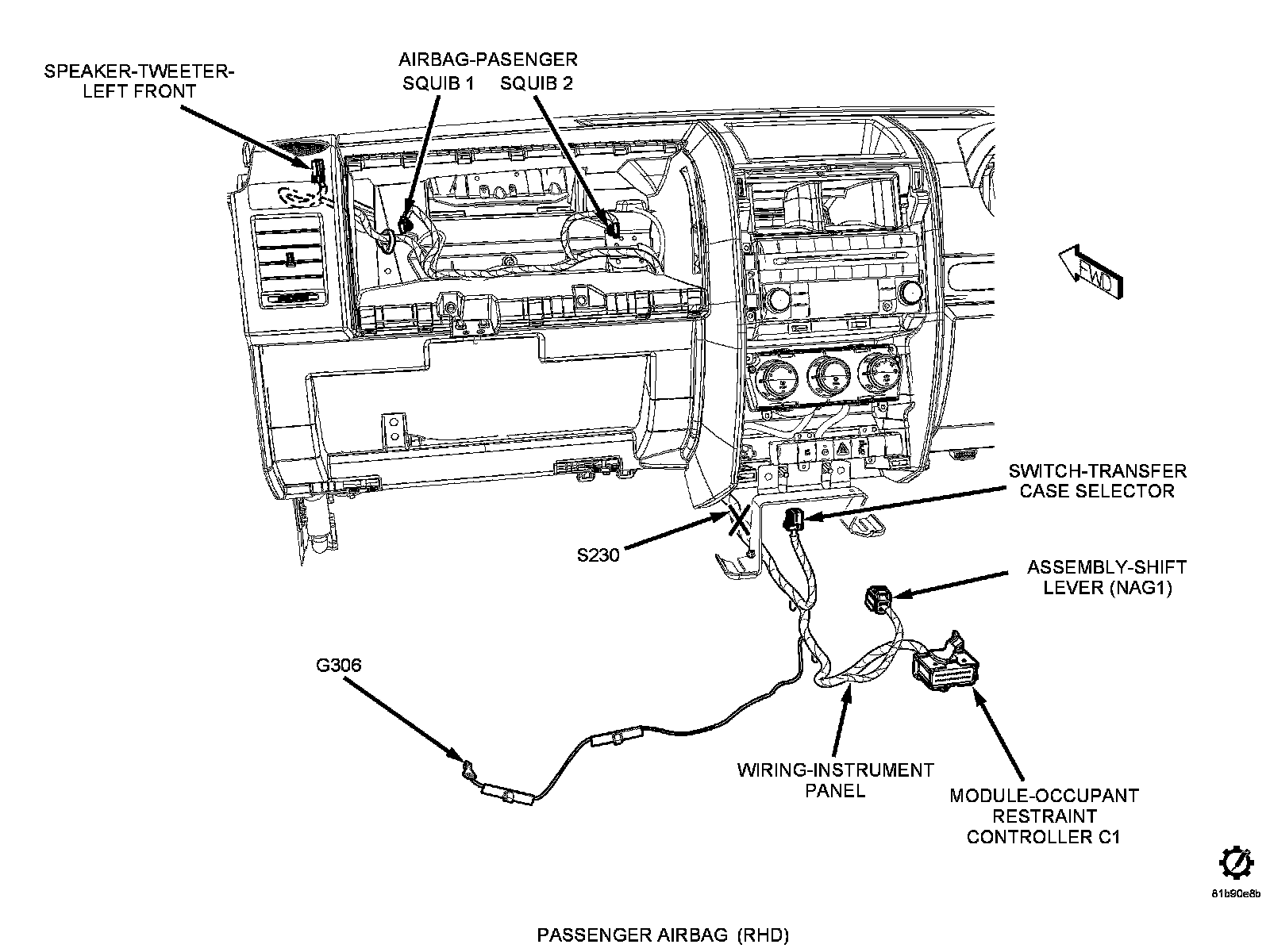

Component Location - 47




Component Location - 41

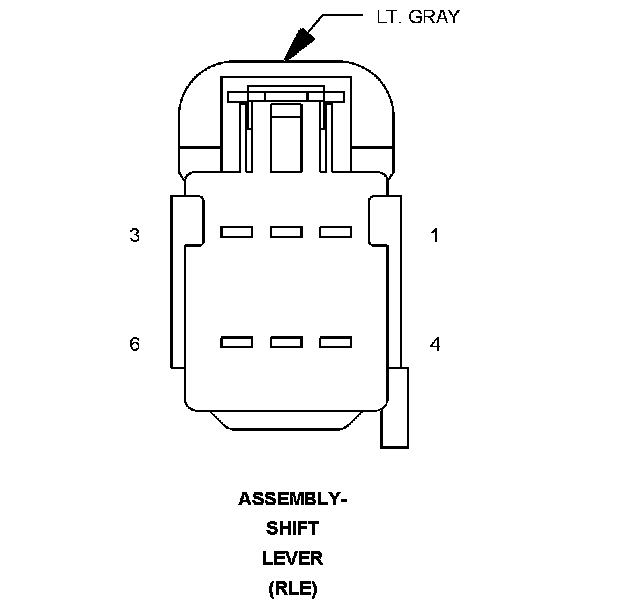

Connector:
Name : ASSEMBLY-SHIFT LEVER
Color :
# of pins : 6
Qualifier : (RLE)
Gender : FEMALE




Pin Circuit Description
1 E12 20OR/GY PANEL LAMPS DRIVER
2 Z910 18BK GROUND
3 T6 20DG TOW/HAUL OD OFF SIGNAL
4 Z910 18BK GROUND
5 K321 20BR/YL BTSI UNLOCK SIGNAL
6 Z910 18BK/WT GROUND

Component Location - 47




Component Location - 41
