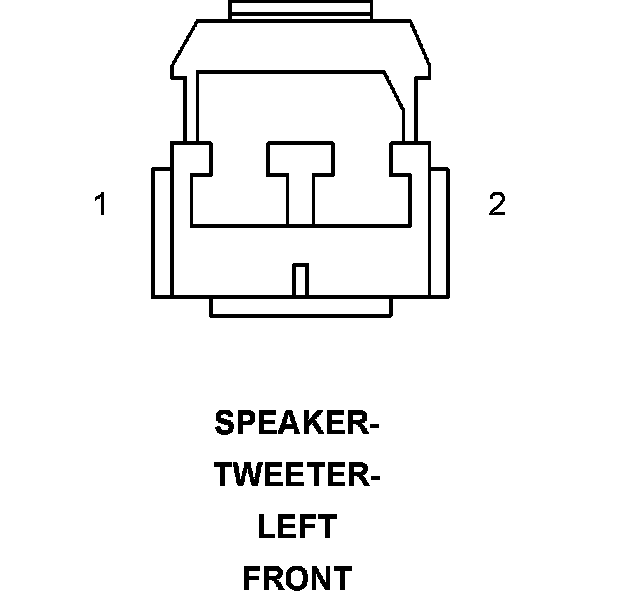

Speaker-Tweeter-Left Front

Component ID: 421
Component : SPEAKER-TWEETER-LEFT FRONT

Connector:
Name : SPEAKER-TWEETER-LEFT FRONT
Color :
# of pins : 2




Pin Circuit Description
1 X201 18GY/VT AMPLIFIED LEFT I/P SPEAKER (+)
2 X291 18GY/YL AMPLIFIED LEFT I/P SPEAKER (-)

Component Location - 43




Component Location - 47
