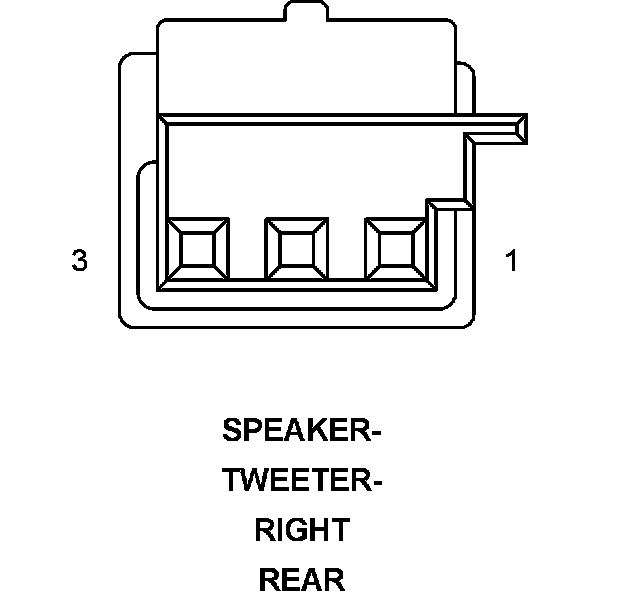

Speaker-Tweeter-Right Rear

Component ID: 424
Component : SPEAKER-TWEETER-RIGHT REAR

Connector:
Name : SPEAKER-TWEETER-RIGHT REAR
Color :
# of pins : 2




Pin Circuit Description
1 X206 18DG/LG AMPLIFIED RIGHT REAR SPEAKER (+)
2 X296 18DG/GY AMPLIFIED RIGHT REAR SPEAKER (-)

Component Location - 52
