Starter Motor

Component ID: 425
Component : STARTER

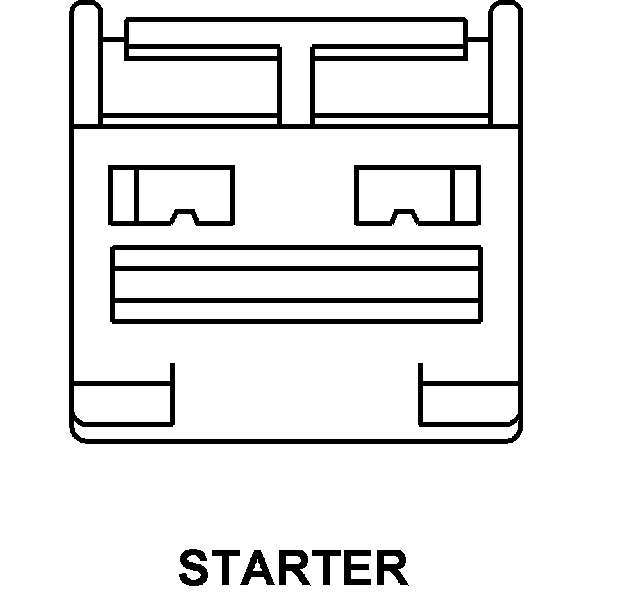

Connector:
Name : STARTER
Color :
# of pins : 1




Pin Circuit Description
1 T750 12YL/GY STARTER RELAY OUTPUT

Component Location - 11




Component Location - 13




Component Location - 14




Component Location - 15




Component Location - 24




Component Location - 18






Connector:
Name : STARTER-EYELET
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Circuit Description
1 A0 2RD B(+)

Component Location - 11




Component Location - 13




Component Location - 14




Component Location - 15




Component Location - 24




Component Location - 18






Connector:
Name : STARTER-EYELET
Color :
# of pins : 1
Qualifier : (GAS)




Pin Circuit Description
1 A0 4RD B(+)

Component Location - 11




Component Location - 13




Component Location - 14




Component Location - 15




Component Location - 24




Component Location - 18
