Steering Angle Sensor, Traction Control

Component ID: 401
Component : SENSOR-STEERING ANGLE

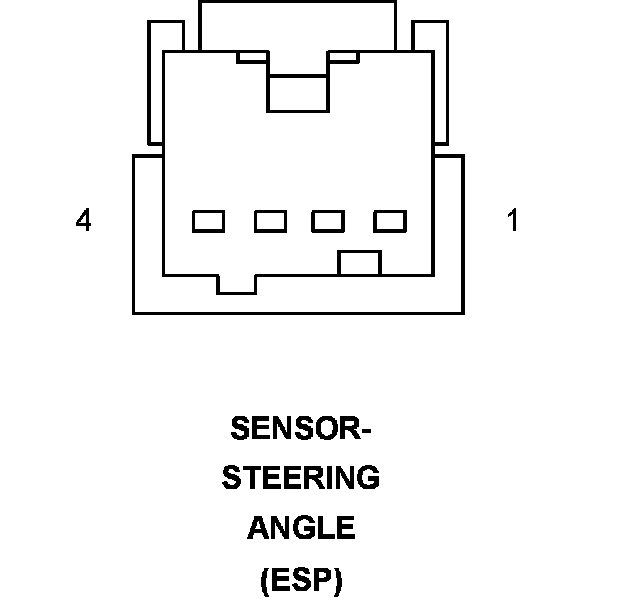

Connector:
Name : SENSOR-STEERING ANGLE
Color :
# of pins : 4
Qualifier : (ESP)
Gender : FEMALE




Pin Circuit Description
1 D65 20WT/BK CAN C BUS (+)
2 D64 20WT/LB CAN C BUS (-)
3 Z910 20BK/RD GROUND
3 Z910 20BK/RD GROUND
3 Z910 20BK/TN GROUND
4 F943 18PK/LG FUSED RUN/START RELAY OUTPUT

Component Location - 49




Component Location - 44
