Monitor-DVD

Component ID: 205
Component : MONITOR-DVD

Connector:

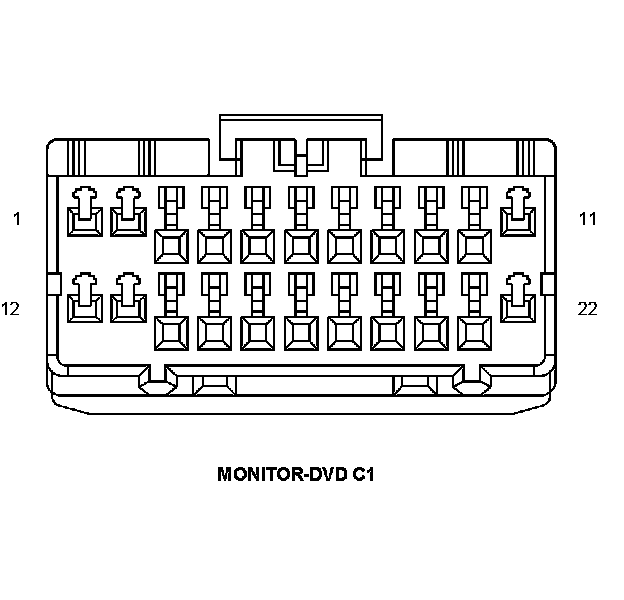

Name : MONITOR-DVD C1
Color :
# of pins : 22




Pin Circuit Description
1 A413 18RD FUSED B(+) (I.O.D.)
2 X540 22GY/VT AUDIO RETURN 1
3 X545 22DG/LB AUDIO LEFT 2
4 X544 22DG/DB AUDIO RIGHT 2
5 D265 20WT/GY CAN INTERIOR BUS (125K) (+)
6 D264 20WT/OR CAN INTERIOR BUS (125K) (-)
7 X536 20BK/BK VDO-VIDEO SHIELD 1
8 X551 22DG/VT AUDIO LEFT 3
9 X550 22DG/YL AUDIO RIGHT 3
10 X542 22GY/YL VIDEO COMMON 2
11 X541 22GY/LB VIDEO SIGNAL 2
12 X539 22DG/TN AUDIO LEFT 1
13 X538 22DG/WT AUDIO RIGHT 1
14 X546 22GY/OR AUDIO RETURN 2
15 - -
16 - -
17 - -
18 X534 22GY/BR VIDEO SIGNAL 1
19 X535 22GY/YL VIDEO COMMON 1
20 X552 22GY/LB AUDIO RETURN 3
21 X543 20BK/BK VIDEO SHIELD 2
22 Z919 18BK/DB GROUND

Component Location - 34






Connector:
Name : MONITOR-DVD C4
Color :
# of pins : 10
Gender : FEMALE




Pin Circuit Description
1 X521 22GY/LB AUX AUDIO LEFT SIGNAL NO. 2
2 X533 20NA AUX VIDEO SHIELD NO. 2
3 X531 22GY/LB AUX VIDEO SIGNAL NO. 2
4 - -
5 - -
6 X519 22DG/VT AUX AUDIO COMMON NO. 2
7 X522 22GY/DB AUX AUDIO RIGHT SIGNAL NO. 2
8 X532 22GY/DB AUX VIDEO COMMON NO. 2
9 - NO FUNCTION DEFINED
10 - NO FUNCTION DEFINED

Component Location - 34
