Screen-Video

Component ID: 351

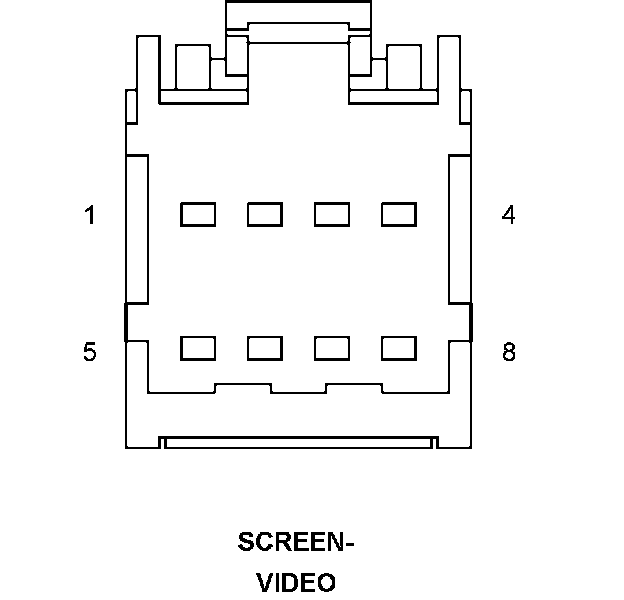

Component : SCREEN-VIDEO

Connector:
Name : SCREEN-VIDEO
Color :
# of pins : 8




Pin Circuit Description
1 D264 20WT/OR CAN INTERIOR BUS (125K) (-)
2 - -
3 Z910 18BK GROUND
4 A413 18RD FUSED B(+) (I.O.D.)
5 D265 20WT/GY CAN INTERIOR BUS (125K) (+)
6 - -
7 - -
8 - -
